Transportable Detonation Chamber

A pre-configured Windows 11 VM for malware detonation testing against multiple EDR solutions.

---

Unified dark-themed Web UI • Real-time Sigma/YARA/IOC detection • Kernel ETW telemetry • PE/ELF binary analysis

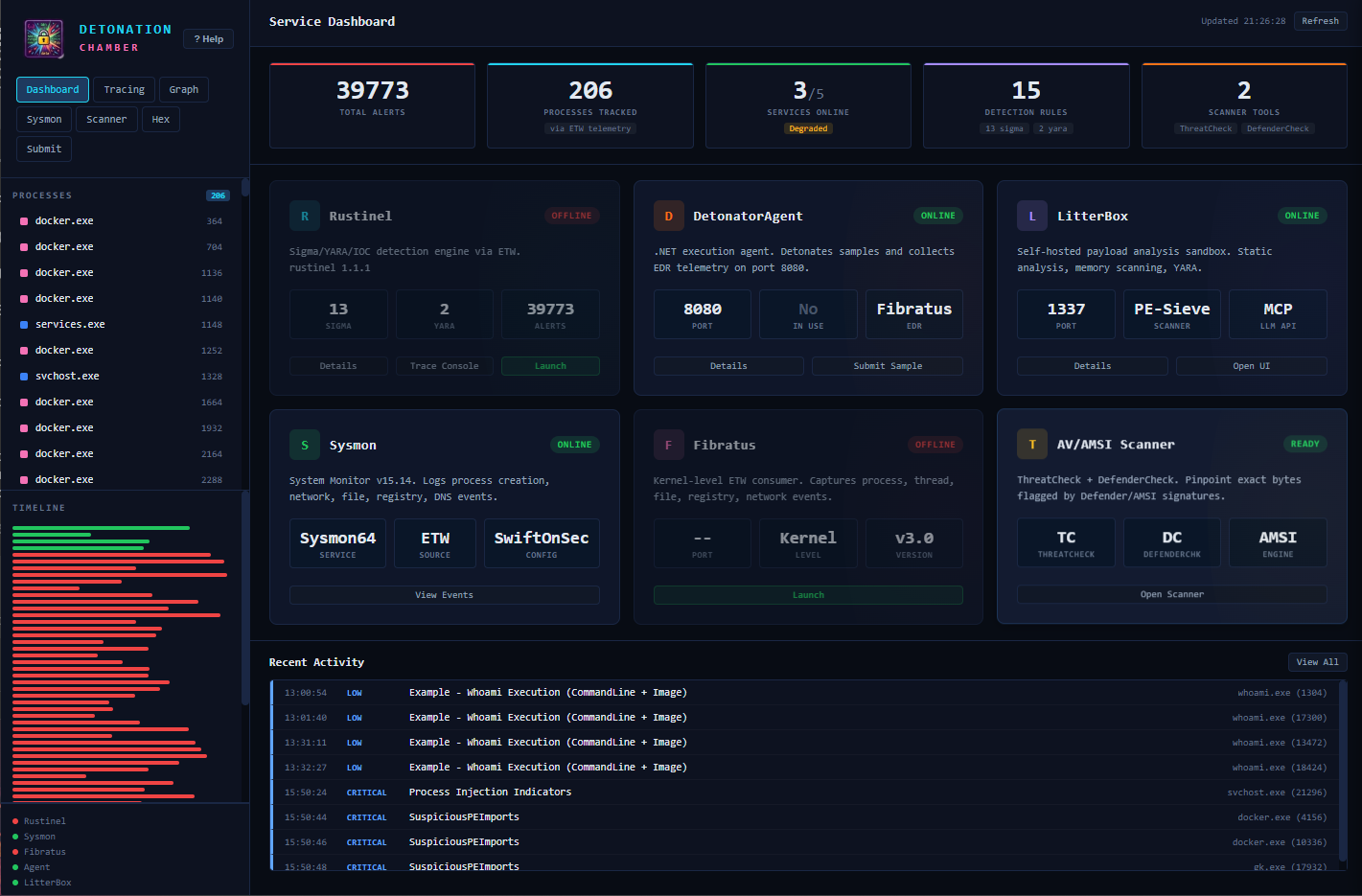

_{Service Dashboard — real-time health monitoring, alert feed, and detection metrics}

---

Table of Contents

• Quick Start
• Features
• Architecture
• Platform Support
• Prerequisites
• Installation
• Usage
• Demo
• API Reference
• Configuration
• Detection Rules
• File Structure
• Troubleshooting
• Security Notes
• Credits

---

Quick Start

Option A: Local UI Only (no VM)

Run the Web UI locally for development or UI testing. Backend services won't be available, but all tabs and features render normally.

# macOS / Linux
make install    # Creates venv, installs Flask + deps
make run        # Starts on http://localhost:9000

# Windows (PowerShell)
.\make.ps1 install
.\make.ps1 run

Option B: Full VM (recommended for analysis)

# macOS Apple Silicon (M1-M4) — UTM-based setup (recommended)
./scripts/setup-macos-utm.sh    # Guided: installs tools, creates VM, provisions

# macOS / Linux — Vagrant-based (requires pre-built box)
make up         # Provisions the full Windows 11 VM
make open       # Opens http://<vm-ip>:9000 in browser

# Windows (PowerShell, run as Administrator)
.\make.ps1 up
.\make.ps1 open

First boot takes ~20-30 minutes (Windows) or ~30-45 minutes (macOS ARM).

---

Features

Detection Engines

Engine	Technology	Capabilities
Rustinel	Rust + ETW	20 Sigma rules, 717 YARA rules, IOC hash matching, real-time NDJSON alerts
Fibratus	Go + Kernel ETW	Process/file/registry/network telemetry, behavior rules
Sysmon	Sysinternals	Event logging (process creation, network, file, registry, image loads)
LitterBox	Python	Static (YARA, strings) + Dynamic (PE-Sieve, Moneta, HollowsHunter, RedEdr)

Web UI Tabs

Tab	Description
Dashboard	Stats strip, 6 service health labels, recent activity feed, toast notifications

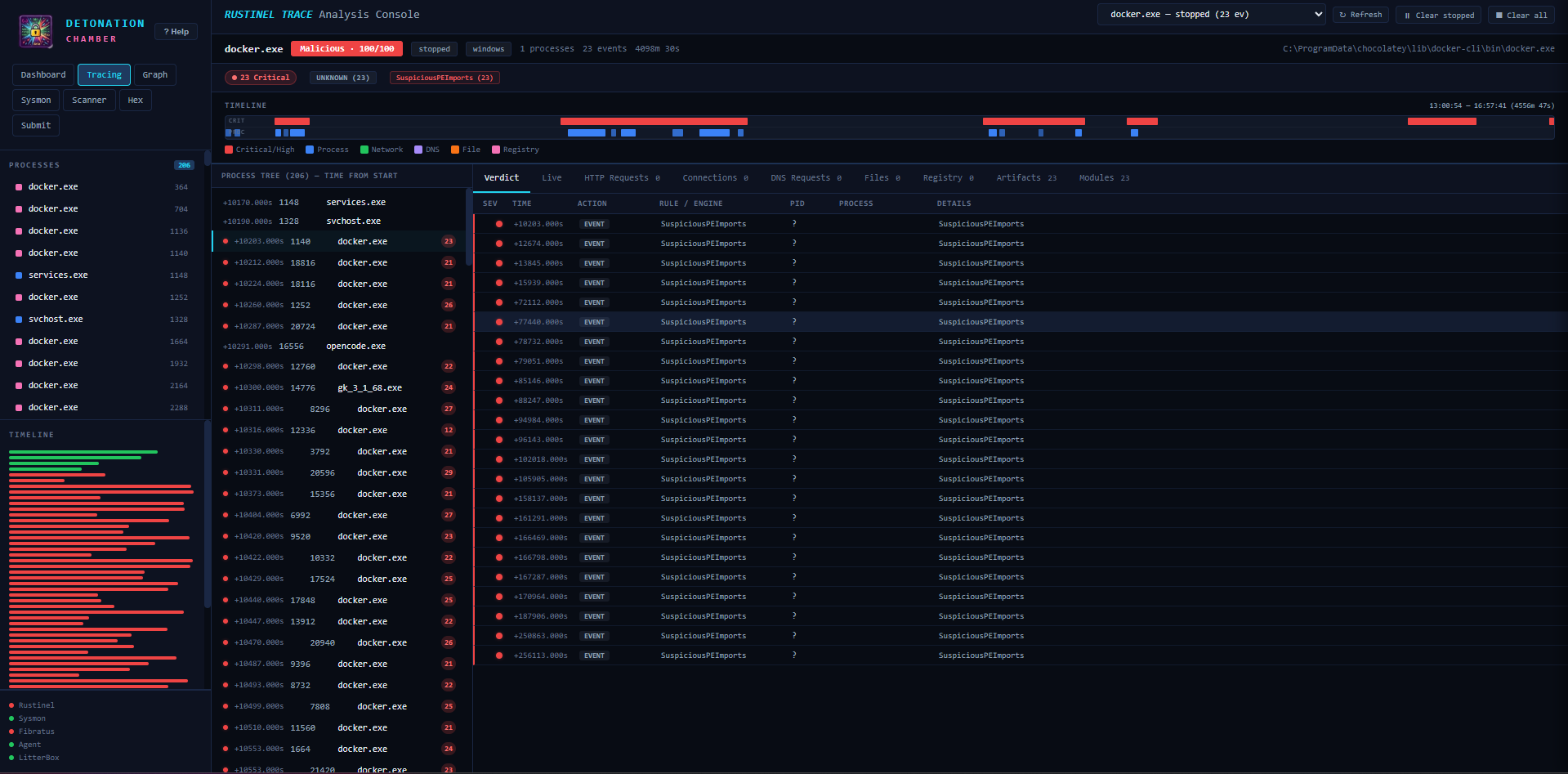

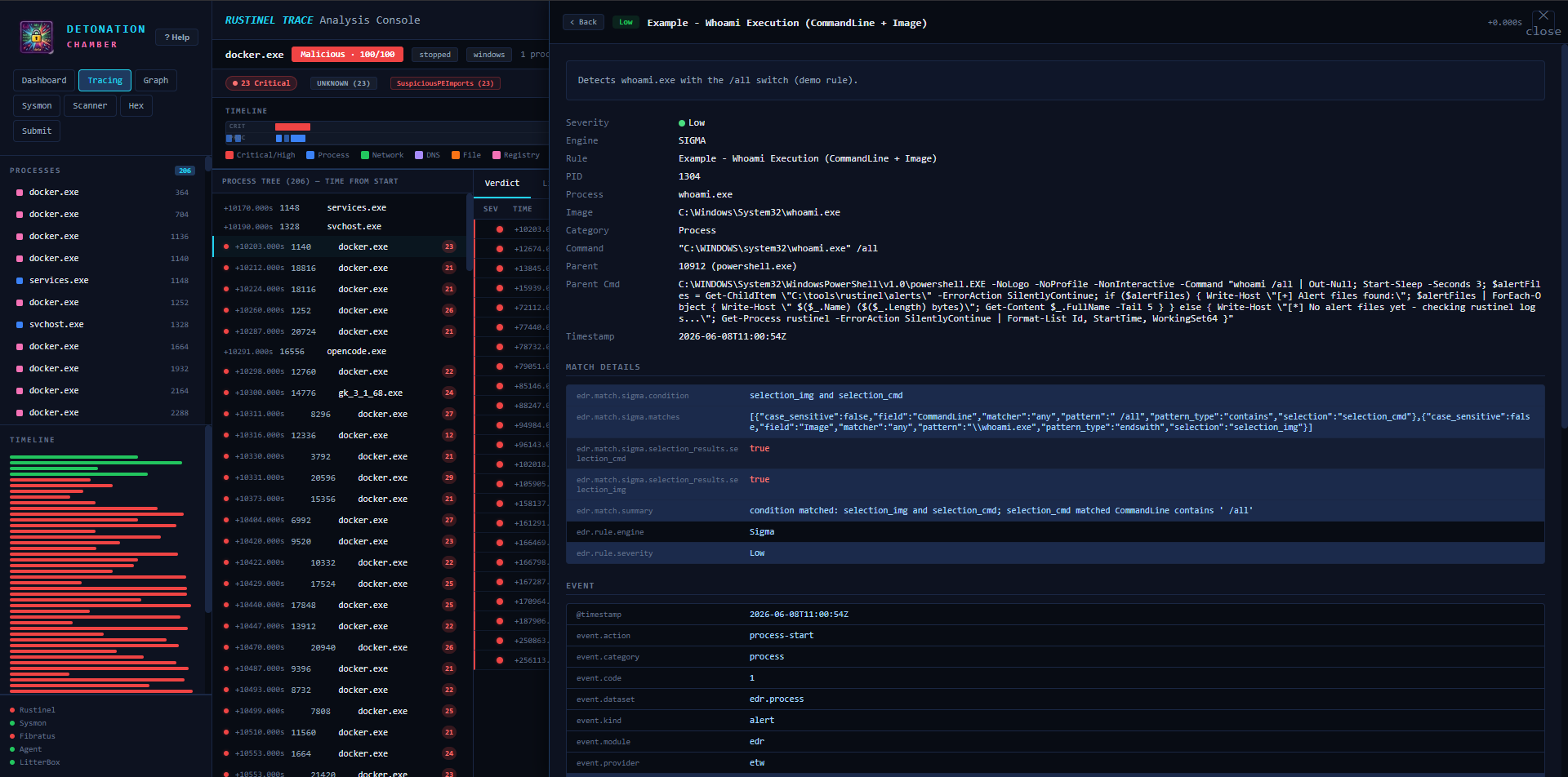

Tracing	Real-time ETW event console, process filtering, timeline visualization

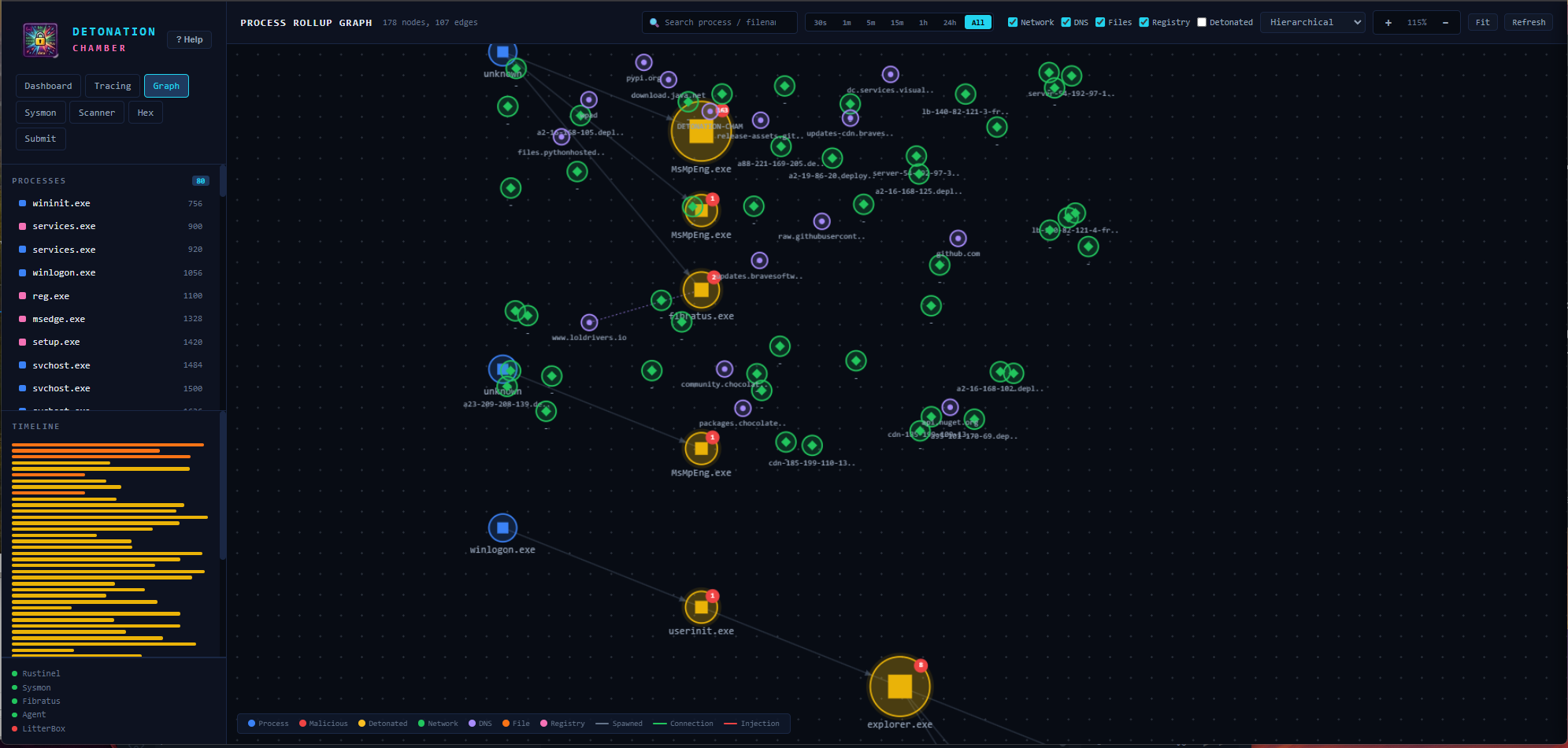

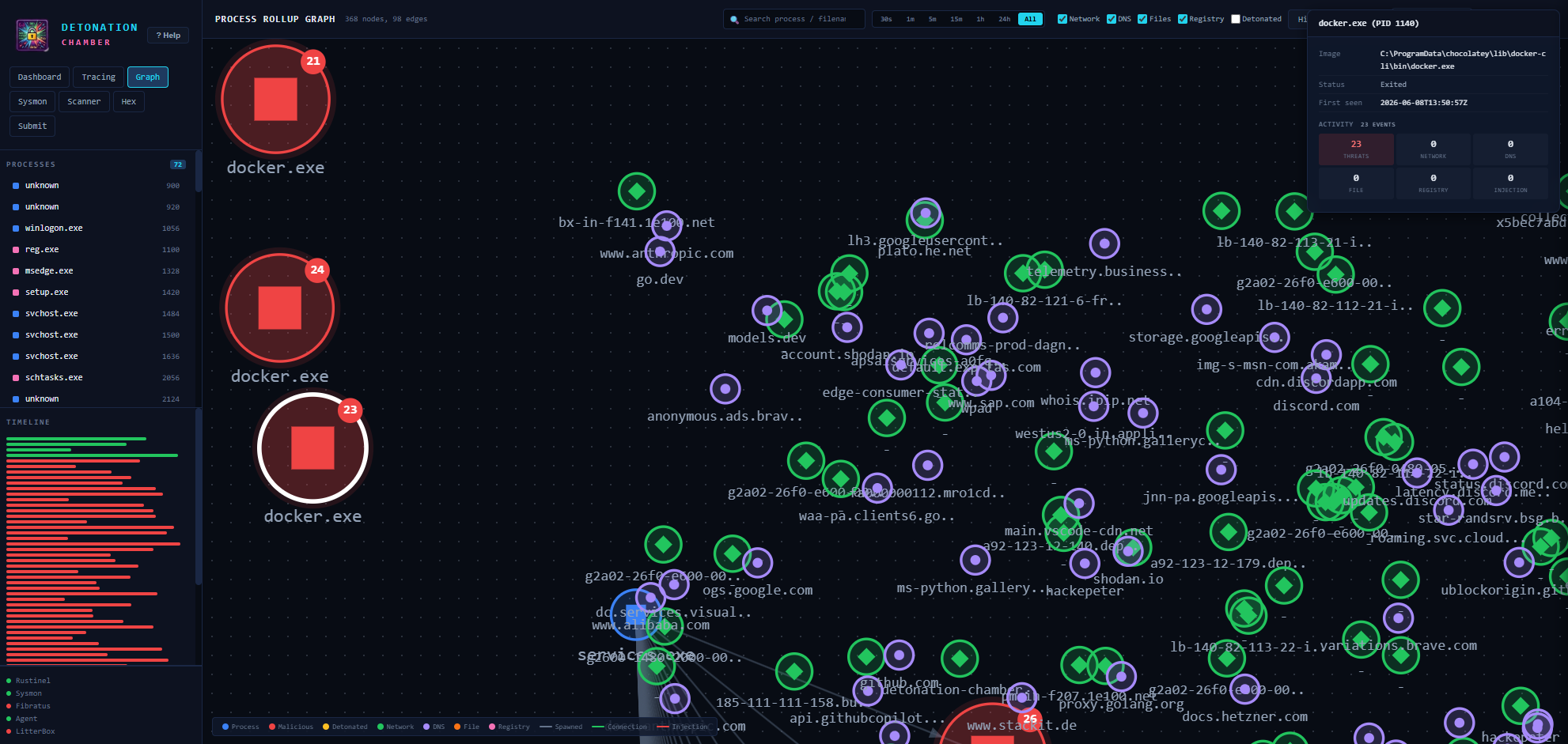

Graph	Process relationship graph (Force/Hierarchical/Radial/Circular/Grid layouts)

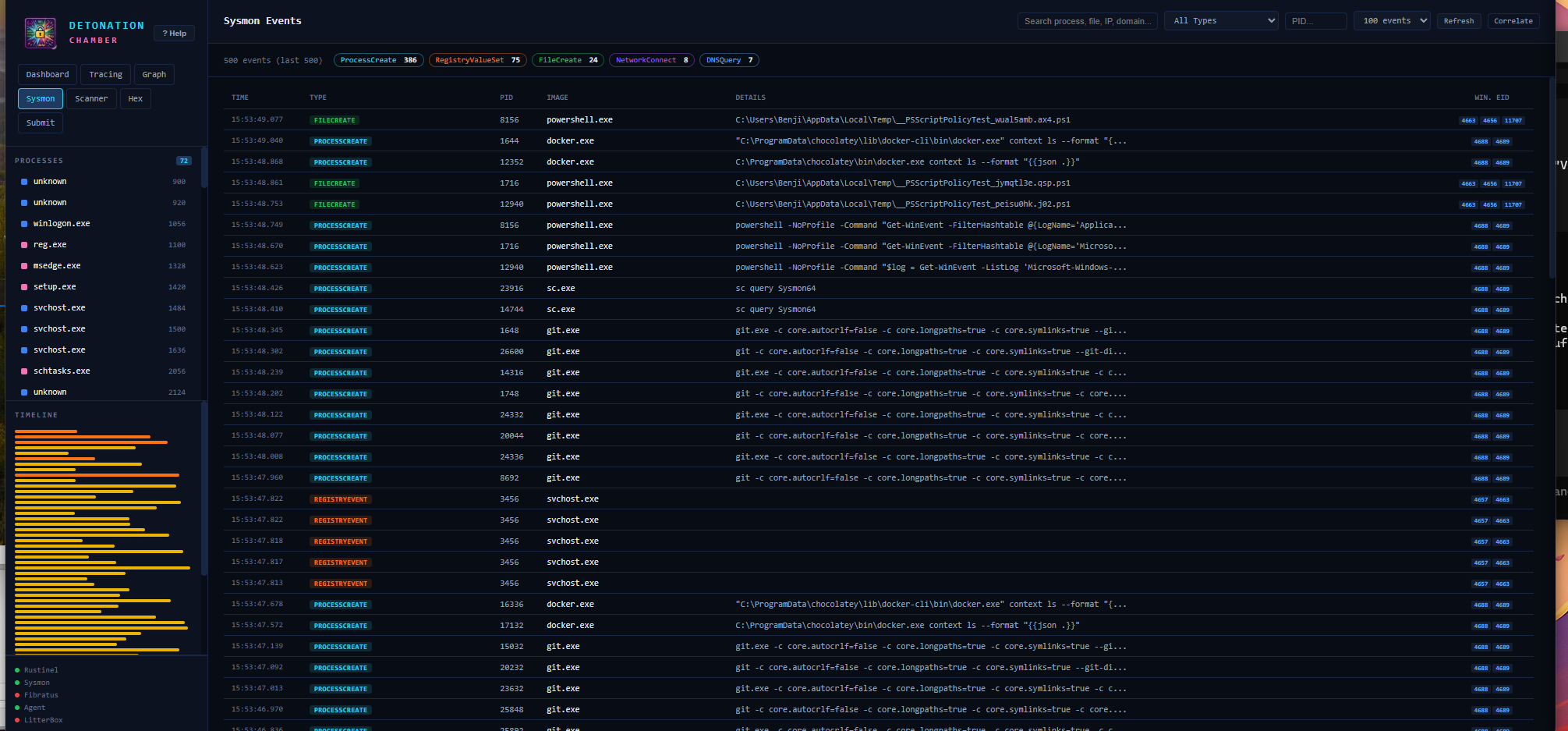

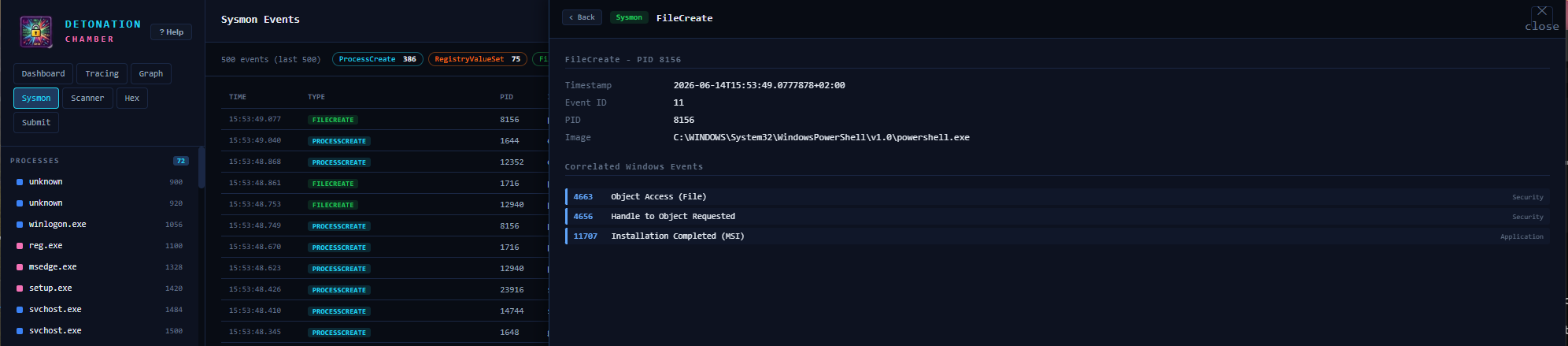

Sysmon	Windows Sysmon event viewer with search, filtering, and Event ID correlation
Scanner	ThreatCheck + DefenderCheck integration with scan history
ETW	Multi-channel Event Log browser with live threat highlighting (see below)

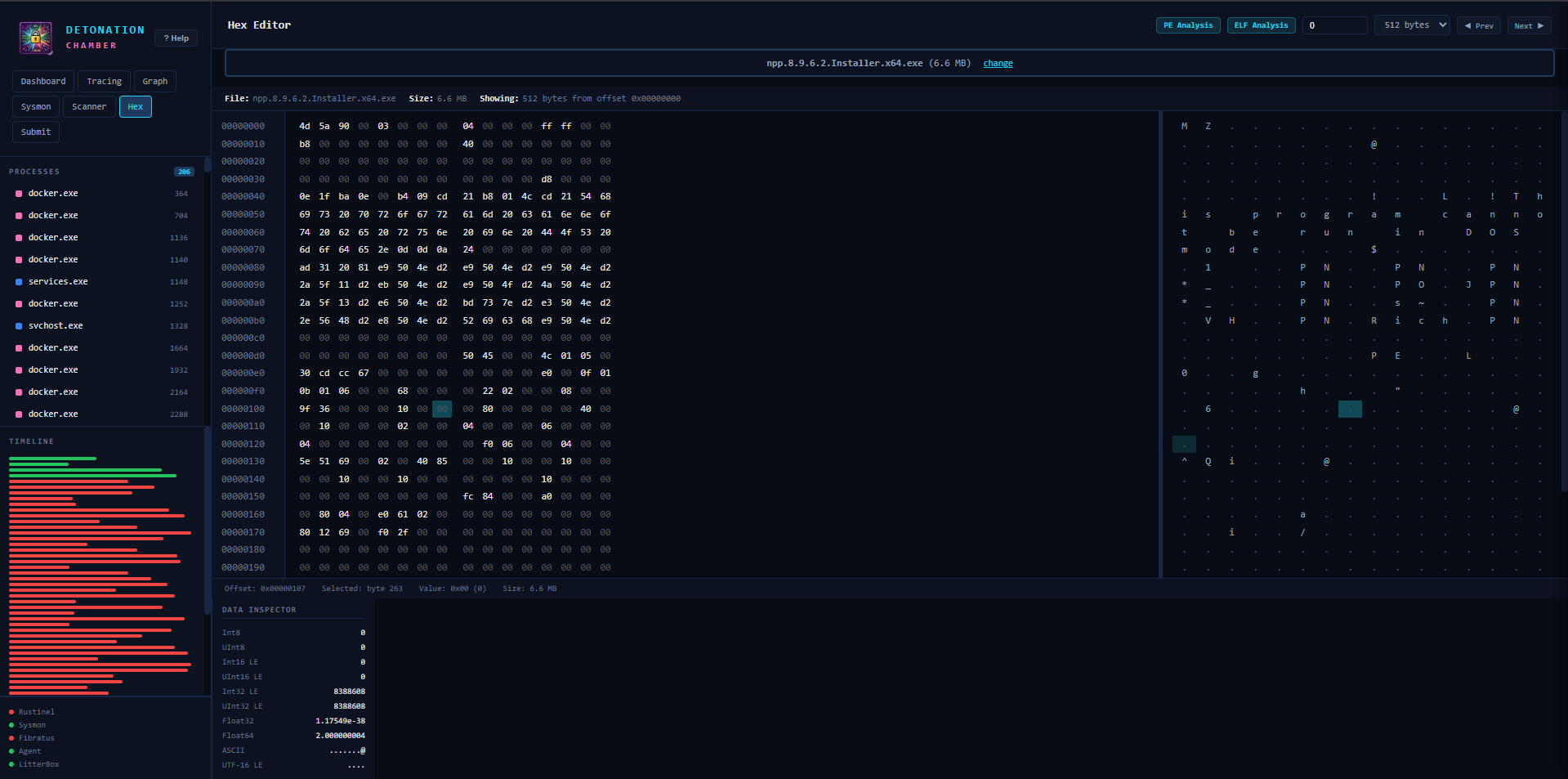

Hex Editor	Binary viewer with data inspector, PE/ELF analysis, drag-and-drop
Submit	Multi-target detonation with stage-by-stage pipeline progress

ETW Browser

The ETW tab provides a multi-channel Windows Event Log viewer with automatic threat classification:

Feature	Details
12 Channels	Sysmon, Security, PowerShell, Defender, WMI, Task Scheduler, BITS, DNS, Firewall, AppLocker, WinRM, Application
Availability Probe	Channels show ● ACTIVE / ○ NO DATA status on load
Auto-Refresh	Polls every 5s (toggleable), keyword filter across all fields
Threat Highlighting	Malicious events highlighted red with threat classification badge
Expandable Details	Click any event to inspect all data fields; suspicious values marked red

Threat detection rules cover:

• Encoded/obfuscated PowerShell (base64, IEX, downloadstring, bypass, hidden)
• LOLBin abuse (certutil, mshta, regsvr32, rundll32, bitsadmin, wmic)
• Credential access (LSASS access, mimikatz, sekurlsa, procdump)
• Persistence (registry Run keys, scheduled tasks, services, WMI subscriptions)
• Defense evasion (AMSI bypass, ETW patching, process tampering)
• Lateral movement (explicit credential logon, WinRM, net use)
• C2 indicators (suspicious ports, .onion/.tk domains, DNS tunneling)
• Sysmon IOCs (CreateRemoteThread, DLL sideloading, ADS creation, process tampering)

Binary Analysis (PE / ELF)

Capability	Details

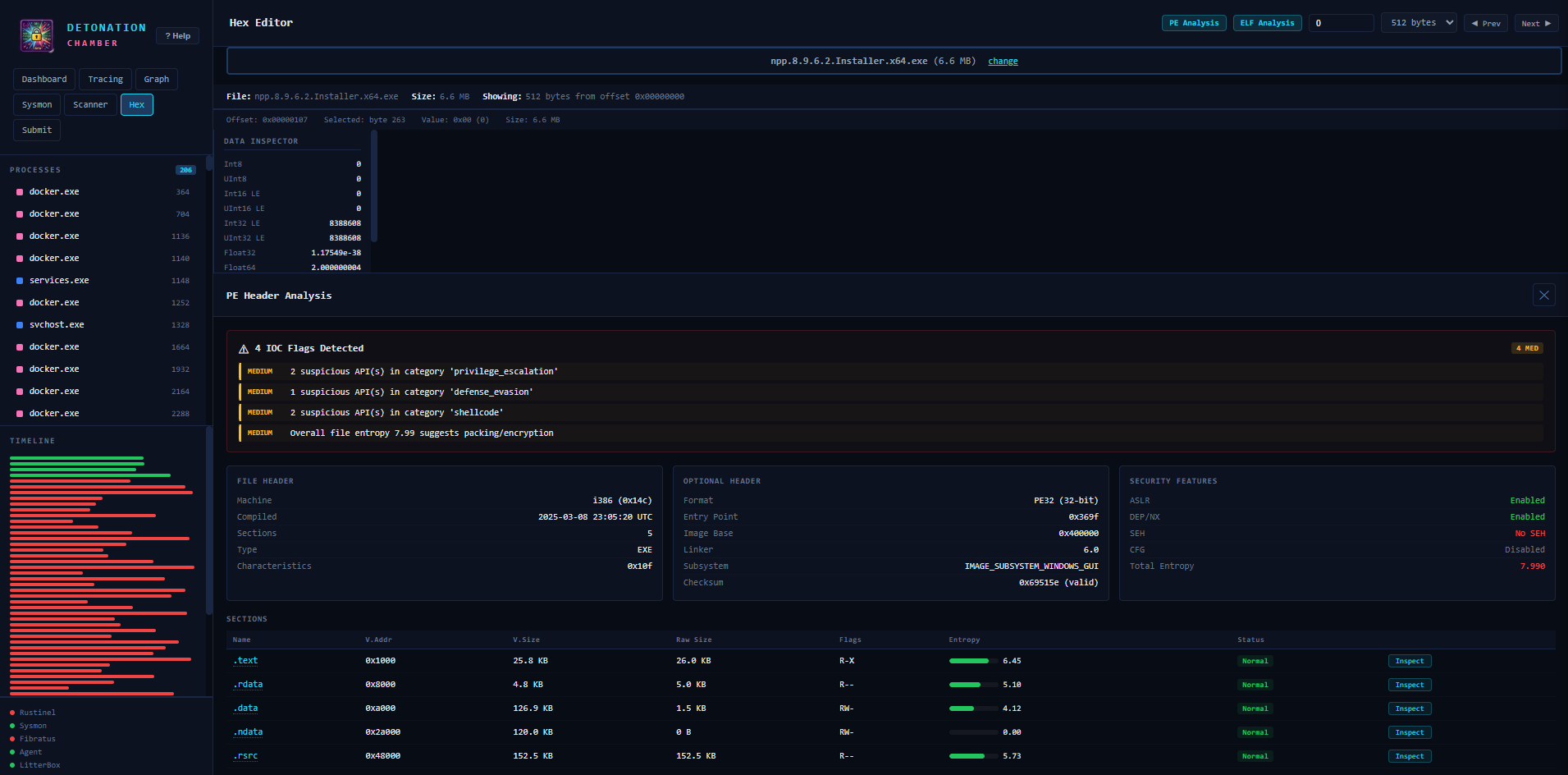

PE Header Analysis	DOS/COFF/Optional headers, ASLR/DEP/SEH/CFG detection

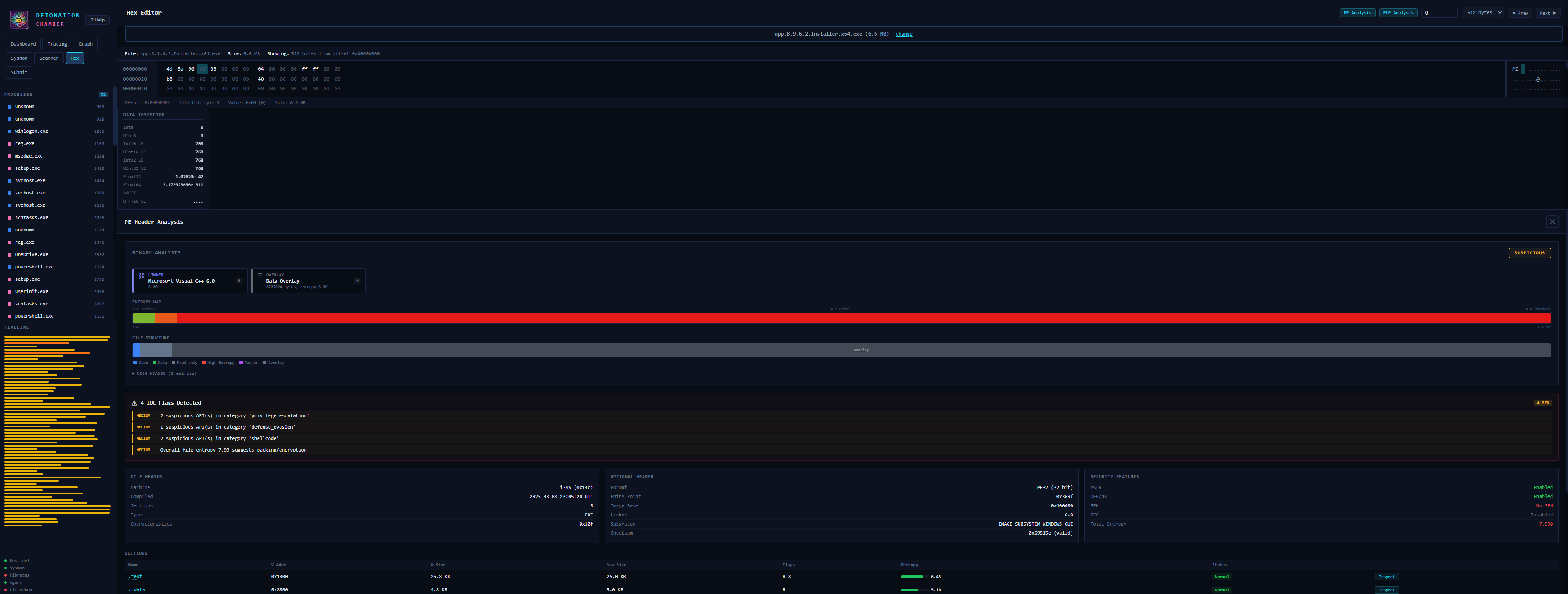

DiE-Style Detection	Compiler, packer, protector, linker identification with assessment
Entropy Heatmap	64-block Shannon entropy visualization (red >= 7.0 = packed)

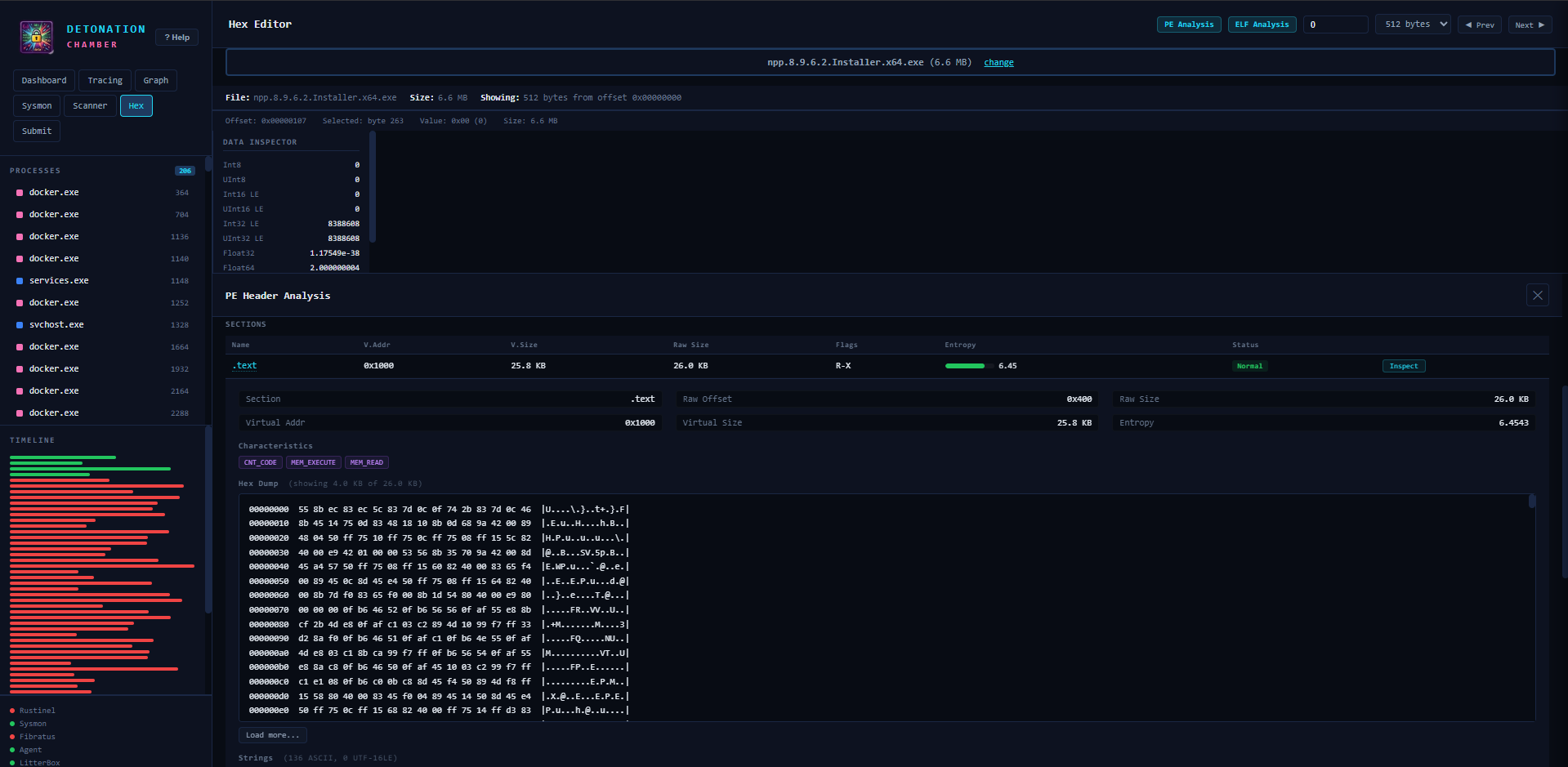

Section Layout	Visual section diagram with RWX permission flagging
ELF Security Audit	PIE, NX stack, RELRO, stack canary, Fortify, stripped detection
Suspicious Imports	Categorized: injection, evasion, credential access, networking, crypto
IOC Flags (clickable)	Expandable detail panels showing matched APIs, detection rules, and explanations
Packer Detection	UPX, Themida, VMProtect, ASPack, MPRESS via section + heuristic matching
TLS Callbacks	Anti-debug indicator detection

Reverse Engineering Tools

Tool	Purpose
Detect It Easy (DiE)	PE/ELF/Mach-O identification — packers, compilers, protectors
WinDbg (Preview)	Kernel/user-mode debugger — crash dumps, live debugging, TTD
Ghidra	NSA RE framework — disassembly, decompilation, scripting
Hunt-Sleeping-Beacons	Callstack scanner for sleeping C2 beacons

Developer Experience

• make deploy-restart: Edit locally, push to VM, restart Flask in one command
• make run-debug: Flask auto-reload on file changes
• Toast Notifications: Throttled error/warning/info toasts with 15s dedup
• Help Modal: Built-in documentation (press "? Help" in sidebar)
• Submissions History: Persisted to JSON with quick hex inspection

---

Architecture

┌─────────────────────────────────────────────────────────────────┐
│  Windows 11 VM (Hyper-V / QEMU)                                 │
│                                                                  │
│  ┌────────────┐   ┌────────────────┐   ┌────────────┐          │
│  │  Web UI    │   │ DetonatorAgent │   │ LitterBox  │          │
│  │  :9000     │──▶│  :8080         │   │  :1337     │          │
│  └────────────┘   └────────────────┘   └────────────┘          │
│       │                  │                   │                   │
│       └──────────────────▼───────────────────┘                  │
│                  ┌────────────────┐                              │
│                  │    Fibratus    │                              │
│                  │  Kernel ETW    │                              │
│                  └────────────────┘                              │
│                  ┌────────────────┐                              │
│                  │   Rustinel     │                              │
│                  │ Sigma+YARA+IOC │                              │
│                  └────────────────┘                              │
│                  ┌────────────────┐                              │
│                  │    Sysmon      │                              │
│                  │  Event Log     │                              │
│                  └────────────────┘                              │
└─────────────────────────────────────────────────────────────────┘

Data Flow

1. Sample submitted via Web UI → forwarded to DetonatorAgent + LitterBox
2. DetonatorAgent executes the sample, returns PID
3. LitterBox runs static (YARA, CheckPlz, Stringnalyzer) + dynamic (PE-Sieve, Moneta, HollowsHunter, RedEdr) analysis
4. Fibratus captures kernel-level ETW events for the process
5. Rustinel matches events against Sigma + YARA rules + IOC hashes
6. Web UI aggregates alerts from all engines into unified timeline

Services

Service	Port	Purpose	Technology
Web UI	9000	Unified dashboard & API gateway	Python / Flask
DetonatorAgent	8080	Executes malware samples, returns PID	.NET 8.0
LitterBox	1337	Static + dynamic analysis sandbox	Python / Flask
Fibratus	8180	Kernel ETW telemetry & behavior rules	Go
Rustinel	—	Sigma/YARA/IOC real-time detection	Rust
Sysmon	—	Windows event logging	Sysinternals
Hunt-Sleeping-Beacons	—	Sleeping C2 beacon callstack scanner	C++ / MSVC
theZoo-WebUI	8888	Malware sample browser	PHP
Detonator	5000/8000	Orchestration UI + REST API	Python

---

Platform Support

Host OS	Hypervisor	Guest Arch	Vagrantfile	Performance
Windows 10/11 (x86_64)	Hyper-V	x86_64	Vagrantfile	Native
macOS Apple Silicon (M1-M4)	QEMU via vagrant-qemu	ARM64	Vagrantfile.utm	Near-native via hvf

ARM64 Compatibility

Component	ARM64 Support	Notes
Sysmon	Native	Sysmon64a.exe (ARM64 binary)
Fibratus	Emulated (x86_64)	No ARM64 build; ~10-20% overhead
Rustinel	Emulated (x86_64)	No ARM64 build; ETW works under emulation
.NET 8 / Python 3.12	Native	Full ARM64 SDK and runtime
DetonatorAgent	Native	Compiled from source via .NET 8
Detonator / LitterBox	Native	Python-based

---

Prerequisites

Windows Host

• Windows 10/11 with Hyper-V enabled
• Vagrant >= 2.4 (download)
• Administrator PowerShell (required for Hyper-V)
• ~30 GB disk, ~8 GB RAM

# Enable Hyper-V (reboot required)
Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V -All

macOS Host (Apple Silicon)

• macOS on Apple Silicon (M1/M2/M3/M4)
• UTM (recommended): brew install --cask utm or mac.getutm.app
• QEMU tools: brew install qemu (for qemu-img)
• Python 3 with pywinrm: pip3 install pywinrm requests-ntlm
• Windows 11 ARM64 ISO from Microsoft
• ~80 GB disk, ~8 GB RAM

Recommended Setup (UTM + automated provisioning)

The fastest path on Apple Silicon uses UTM as the hypervisor with automated provisioning via WinRM. A single script handles everything after the initial Windows installation:

# Full guided setup (installs prerequisites, guides VM creation, provisions)
./scripts/setup-macos-utm.sh

# Or step by step:
./scripts/setup-macos-utm.sh --skip-prerequisites   # if tools already installed
./scripts/setup-macos-utm.sh --provision-only --vm-ip 192.168.64.4  # re-provision existing VM

Manual steps (the script guides you through these):

1. Install UTM and create a Windows 11 ARM64 VM (8 GB RAM, 4 cores, 80 GB disk)
2. Install Windows normally with a local admin account (vagrant/vagrant recommended)
3. Run scripts/prepare-vagrant-winrm.ps1 inside the VM (enables WinRM remote management)
4. Run ./scripts/setup-macos-utm.sh --provision-only --vm-ip <vm-ip>

The provisioning installs all detection engines, analysis tools, and the unified Web UI (~20-40 minutes on first run).

Alternative: Vagrant/QEMU (headless, experimental)

For a fully headless Vagrant-managed workflow, see Vagrantfile.utm. This path requires building a custom win11-arm Vagrant box from the ISO:

make prerequisites-fix          # Install QEMU, Vagrant, vagrant-qemu plugin
./scripts/build-box-macos.sh --iso ~/Downloads/Win11_ARM64.iso
make build                      # Provision the VM

Note: Headless QEMU boot of Windows 11 ARM64 ISOs can be unreliable on some QEMU/firmware combinations. The UTM path above is recommended.

Local Development Only

• Python 3.10+ (any platform)
• Make (macOS: Xcode CLI tools; Windows: not needed, use make.ps1)

---

Installation

Using make / make.ps1

The project includes a cross-platform build system:

Command	Description
install	Create Python venv + install Flask, requests, watchdog, pefile
run	Start Web UI locally on port 9000
run-debug	Start with Flask auto-reload (watches file changes)
up	Provision and start the full VM
halt	Stop the VM gracefully
destroy	Delete the VM
deploy	Sync webui files (HTML/CSS/JS) to running VM
deploy-app	Sync Flask backend (app.py) to VM
restart	Restart the Web UI service on VM
deploy-restart	Deploy + restart in one step
open	Open Web UI in default browser
status	Show VM + service health
services	List all service states
alerts	Show recent detection alerts
test	Submit test sample to verify pipeline
submit FILE=x	Submit a file for detonation
logs	Tail Web UI logs from VM
ssh / rdp	Connect to VM
clean	Destroy VM + remove .vagrant
clean-all	Also remove cached Vagrant boxes
uninstall	Remove local Python venv

macOS / Linux:

make install        # Local venv setup
make run            # Local server
make up             # Full VM
make deploy-restart # Push changes to VM

Windows (PowerShell):

.\make.ps1 install
.\make.ps1 run
.\make.ps1 up              # Run as Administrator
.\make.ps1 deploy-restart

Manual Installation

cd webui
python3 -m venv .venv
source .venv/bin/activate   # Windows: .venv\Scripts\activate
pip install -r requirements.txt
python app.py               # http://localhost:9000

---

Usage

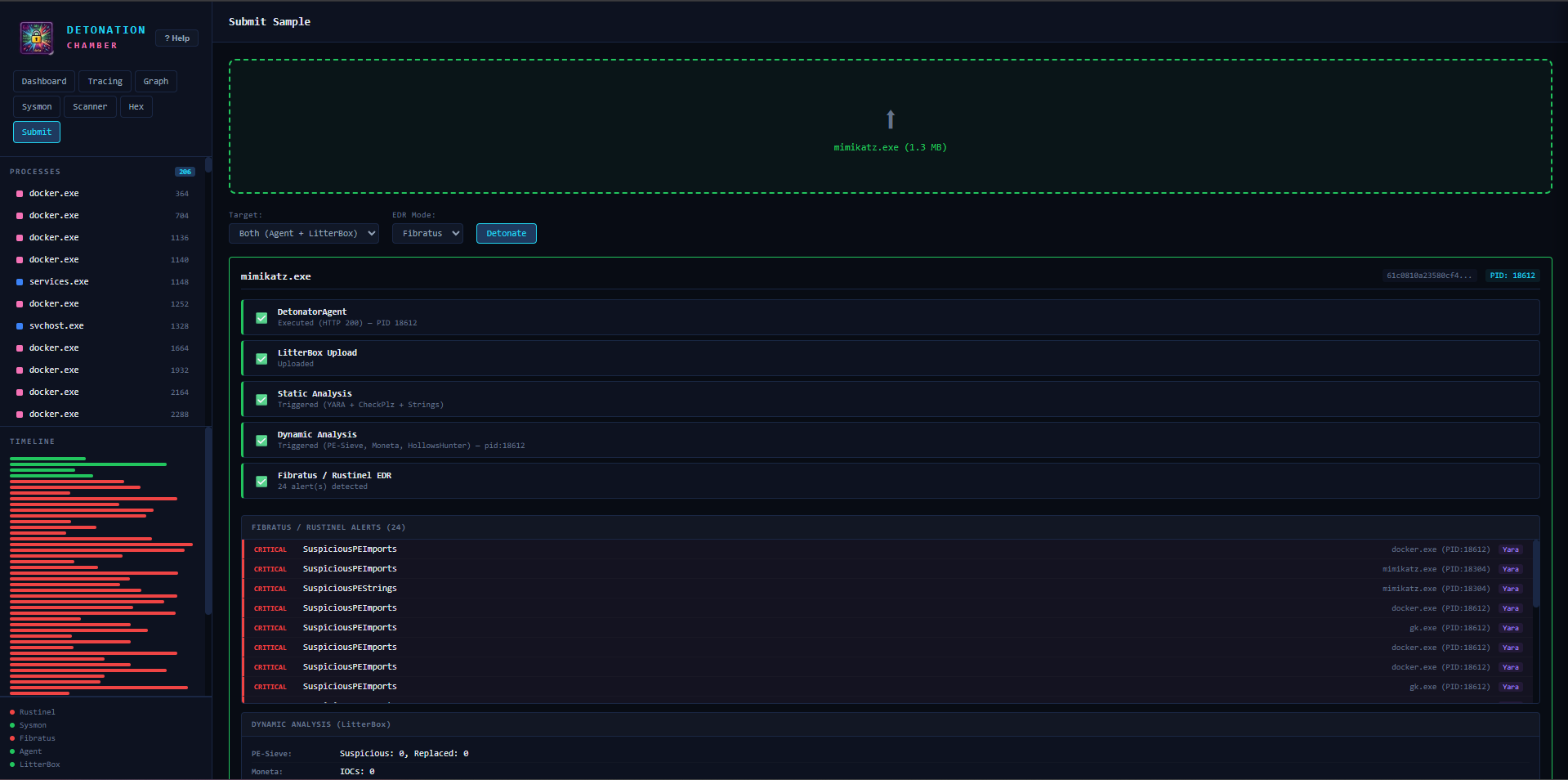

Detonation Workflow

1. Open the Web UI at http://localhost:9000
2. Go to the Submit tab
3. Drag and drop (or browse) a malware sample
4. Select target: Agent (execution), LitterBox (analysis), or Both
5. Click Submit — watch the pipeline stages progress
6. Switch to Tracing tab to see real-time ETW alerts
7. Switch to Graph tab to see process relationships
8. Check Dashboard for severity breakdown

CLI Submission

# macOS / Linux
make submit FILE=./samples/mimikatz.exe TARGET=both

# Windows
.\make.ps1 submit -File .\samples\mimikatz.exe -Target2 both

Scanner Workflow

1. Go to Scanner tab
2. Upload a file (drag and drop) or enter a VM path
3. Select tool (ThreatCheck / DefenderCheck) and engine (Defender / AMSI)
4. Click Scan — results show detection status and trigger offset
5. Click "View in Hex" to jump to the flagged bytes

PE Analysis

1. Go to Hex Editor tab
2. Upload a PE file
3. Click PE Analysis button
4. Review: headers, security features (ASLR/DEP/SEH/CFG), section entropy, suspicious imports, packer indicators, DiE-style detection overview

ELF Analysis

1. Go to Hex Editor tab
2. Upload an ELF binary (Linux/BSD executables, shared objects)
3. Click ELF Analysis button
4. Review: ELF header, security audit (PIE/NX/RELRO/canary/Fortify), sections, segments, dynamic libraries, suspicious symbol imports

Hunt-Sleeping-Beacons

Scan running processes for sleeping C2 beacons (RDP or SSH into VM):

# Scan all processes
Hunt-Sleeping-Beacons.exe

# Scan a specific PID (e.g., after detonation)
Hunt-Sleeping-Beacons.exe -p 1234

# Include .NET processes (more false positives)
Hunt-Sleeping-Beacons.exe --dotnet

# Show command lines for suspicious processes
Hunt-Sleeping-Beacons.exe --commandline

# Shortcut alias
hsb --commandline

Detections include: unbacked memory in callstacks, non-executable memory pages, module stomping (SharedOriginal check), suspicious APC dispatchers, timer-based sleepmask callbacks, abnormal intermodular calls (module proxying), and return address spoofing (jmp gadget patterns).

---

Demo

Service Dashboard

The main landing page with a stats strip showing 39,773 total alerts, 206 tracked processes, 3/5 services online (degraded state), 15 detection rules (13 Sigma + 2 YARA), and 2 scanner tools. Below are 6 service health cards for Rustinel, DetonatorAgent, LitterBox, Sysmon, Fibratus, and AV/AMSI Scanner — each showing port, version, and quick-action buttons. The Recent Activity feed streams live detections with severity coloring (LOW Sigma rules like Whoami Execution, CRITICAL YARA hits like SuspiciousPEImports). The left sidebar lists all tracked processes with alert counts and a color-coded timeline per engine.

---

Sample Detonation (Mimikatz)

The Submit tab after detonating mimikatz.exe (1.3 MB) with target "Both (Agent + LitterBox)" and Fibratus EDR mode. The pipeline shows all 5 stages completed: DetonatorAgent execution (HTTP 200, PID 18612), LitterBox upload, Static Analysis (YARA + CheckPlz + Strings), Dynamic Analysis (PE-Sieve, Moneta, HollowsHunter), and Fibratus/Rustinel EDR (24 alerts). Below lists all CRITICAL detections — SuspiciousPEImports on docker.exe, mimikatz.exe, and gk.exe. Dynamic results: PE-Sieve (Suspicious: 0) and Moneta (IOCs: 0).

---

Rustinel Trace Analysis

Left: The Tracing console for docker.exe scored "Malicious 100/100" (23 events over 4090m). Filter pills: "23 Critical", "SuspiciousPEImports (23)". The timeline bar shows event distribution by type (Critical/High, Process, Network, DNS, File, Registry). Verdict table lists each hit with severity, timestamp offset, rule name, and PID. Tabs for Live, HTTP Requests, Connections, DNS, Files, Registry, Artifacts (23), Modules.

Right: Alert detail panel for a Sigma hit: "Example - Whoami Execution (CommandLine + Image)". Shows severity (Low), engine (SIGMA), PID (1304), process (whoami.exe), command line, parent info (powershell.exe PID 10912), full parent command. MATCH DETAILS shows condition logic (selection_img AND selection_cmd) with JSON patterns. EVENT section has complete ECS fields (@timestamp, event.action: process-start, event.kind: alert, event.provider: etw).

---

Process Relationship Graph

Left: Hierarchical layout showing 178 nodes, 107 edges at 115% zoom. Color-coded nodes: blue squares (system processes — winlogon.exe, explorer.exe, userinit.exe), yellow/orange with red badges (malicious/detonated — fibratus.exe, MsMpEng.exe), green diamonds (network connections — pypi.org, github.com, loldrivers.io, files.pythonhosted), purple circles (DNS). Edges: solid (spawn), dashed (connection), red (injection). Filters for Network, DNS, Files, Registry, Detonated. Time ranges: 30s to All.

Right: Force-directed layout with docker.exe (PID 1148) selected. Detail panel: image path, status (Exited), activity (23 Threats, 0 Network/DNS/File/Registry/Injection). Three large red nodes (docker.exe instances with 21, 24, 23 alerts) surrounded by dense network/DNS web (discord.com, shodan.io, github.com, google.com, storage.googleapis, docs.hetzner.de, and dozens more).

---

PE Binary Analysis

Left: PE Header Analysis for npp.8.9.6.2.Installer.x64.exe (6.6 MB). IOC banner: "4 IOC Flags Detected" — suspicious APIs in privilege_escalation (2), defense_evasion (1), shellcode (2), plus entropy 7.99 (packing). Three-column layout: FILE HEADER (i386, 2025-03-08, 5 Sections), OPTIONAL HEADER (PE32, Entry 0x369f, Linker 6.0, WINDOWS_GUI), SECURITY FEATURES (ASLR/DEP enabled, NO SEH, CFG disabled, Entropy 7.990 red). Section table with entropy bars and "Inspect" buttons.

Right: DiE-style detection overview. Assessment: "SUSPICIOUS" (red badge). Detection cards: "LINKER: Microsoft Visual C++ 6.0", "OVERLAY: Data Overlay". ENTROPY MAP color bar — green (low entropy .text/.rdata), massive red block (.ndata = NSIS compressed data). FILE STRUCTURE section layout diagram with legend (Code, Data, High Entropy, Overlay). Expandable "+ RICH HEADER (5 entries)".

---

Section Inspection & Hex Editor

Left: .text section expanded via "Inspect". Metadata: Raw Offset 0x400, Raw Size 26.0 KB, Virtual Addr 0x1000, Entropy 6.4543. Characteristic badges: CNT_CODE, MEM_EXECUTE, MEM_READ. Live hex dump of first 4.0 KB with offsets, bytes, and ASCII. "Load more..." for paging. Below: "Strings (136 ASCII, # UTF-16LE)" for string extraction.

Right: Raw hex editor showing 512 bytes at offset 0x00000000. MZ header visible (4D 5A 90...) with DOS stub. Right column: ASCII interpretation. Data Inspector below showing cursor value as Int8/16/32/64, Float32/64, ASCII, UTF-16 LE. Top-right: PE/ELF Analysis buttons, offset input, 512-byte pages with Prev/Next.

---

Sysmon Event Monitoring

Left: Sysmon tab with 500 events. Filter pills: ProcessCreate (386), RegistryValueSet (75), FileCreate (24), NetworkConnect (8), DNSQuery (7). Table: TIME, TYPE (color-coded green/cyan/orange), PID, IMAGE, DETAILS (full command lines — powershell.exe, docker.exe, sc.exe, git.exe), WIN. EID column (4688, 4689, 4663, 4656, 11707). Search, type/PID dropdowns, max events slider, Refresh and Correlate buttons.

Right: Detail panel for FileCreate event (PID 8156). Shows: timestamp, Sysmon Event ID 11, Image (powershell.exe). "Correlated Windows Events" maps to related log entries: 4663 "Object Access (File)" (Security), 4656 "Handle to Object Requested" (Security), 11707 "Installation Completed (MSI)" (Application) — cross-log context for the same operation.

---

API Reference

All endpoints served on port 9000. Responses are JSON.

Core

Method	Endpoint	Description
GET	/api/alerts	All detection alerts (Rustinel + Fibratus + LitterBox)
GET	/api/processes	Tracked processes with activity counts
GET	/api/status	Service health status (all components)
GET	/api/rustinel	Rustinel engine info (rules, version)
GET	/api/submissions	Submission history (last 200)

Submission & Detonation

Method	Endpoint	Description
POST	/api/submit	Submit sample (multipart). Params: file, target (agent/litterbox/both)
GET	/api/detonation/results	Poll results. Params: sha256, pid, litterbox_hash, filename

Hex Editor & Binary Analysis

Method	Endpoint	Description
GET	/api/file/hex	Hex dump. Params: path, offset, bytes
POST	/api/file/hex/upload	Upload file for hex viewing
GET	/api/file/pe	PE header analysis. Param: path
GET	/api/file/elf	ELF binary analysis. Param: path

Sysmon

Method	Endpoint	Description
GET	/api/sysmon	Sysmon events. Params: max, event_id, pid
GET	/api/sysmon/stats	Sysmon statistics and diagnostics

ETW Browser

Method	Endpoint	Description
GET	/api/etw/channels	List available channels. Param: probe=true adds availability status
GET	/api/etw/events	Query events. Params: channel, max, since, filter

Scanner

Method	Endpoint	Description
POST	/api/scan/threatcheck	ThreatCheck scan. Params: file/path, engine, type
POST	/api/scan/defendercheck	DefenderCheck scan. Params: file/path
GET	/api/scan/status	Scanner tool availability

Proxy Endpoints

Method	Endpoint	Description
GET/POST	/api/litterbox/<path>	Proxy to LitterBox API (:1337)
GET	/api/fibratus/<path>	Proxy to Fibratus API (:8180)

---

Configuration

Environment Variables (Web UI)

Variable	Default	Description
RUSTINEL_ALERTS_DIR	C:\tools\rustinel\logs	Rustinel NDJSON alert directory
RUSTINEL_INSTALL_DIR	C:\tools\rustinel	Rustinel installation root
DETONATOR_API	http://127.0.0.1:8000	Detonator REST API
DETONATOR_AGENT_API	http://127.0.0.1:8080	DetonatorAgent API
LITTERBOX_API	http://127.0.0.1:1337	LitterBox API
WEBUI_PORT	9000	Web UI listen port

Custom Detection Rules

Sigma (hot-reload):

C:\tools\detection-rules\rustinel-rules\dist\windows-advanced\rules\sigma\

YARA (hot-reload):

C:\tools\detection-rules\yara-combined\

IOC Hashes (hot-reload, add SHA-256 one per line):

C:\tools\detection-rules\rustinel-rules\dist\windows-advanced\rules\ioc\

Defender Exclusions

Provisioning adds exclusions for detonation paths. To fully disable for testing:

# Inside VM, run as Administrator
Set-MpPreference -DisableRealtimeMonitoring $true

---

Detection Rules

Type	Count	Source
Sigma	20 rules	Karib0u/rustinel-rules windows-advanced pack
YARA	717 compiled	Rustinel-rules + Elastic protections-artifacts
IOC	Dynamic	SHA-256 hash matching, auto-fed on sample submission

Sigma coverage:

• 14 process_creation (encoded PowerShell, schtasks, LOLBins, credential dumping)
• 3 registry_event (Run key persistence, Defender tampering, WDigest)
• 1 task_creation (suspicious scheduled task actions)
• 1 ps_script (PowerShell script block logging)
• 1 service_creation

---

File Structure

transportable-detonation-chamber/
├── Makefile                        # Build system (macOS/Linux)
├── make.ps1                        # Build system (Windows PowerShell)
├── Vagrantfile                     # VM definition (Hyper-V)
├── Vagrantfile.utm                 # VM definition (QEMU/UTM, Apple Silicon)
├── README.md
├── tdc-logo.png
│
├── static/                         # Screenshots for documentation
│   ├── dashboard.png
│   ├── mimikatz_detonation.png
│   ├── rustinel_analysis.png
│   ├── rustinel_analysis_details.png
│   ├── process_rollup.png
│   ├── process_rollup_details_scan_correlation.png
│   ├── pe_header_analyzer.png
│   ├── PE_header_packing_analyzer.png
│   ├── pe_analyzer_text_header_section.png
│   ├── hex_editor.png
│   ├── sysmon_event_ids.png
│   └── sysmon_windows_event_id_correlation.png
│
├── webui/                          # Unified Web UI
│   ├── app.py                     # Flask backend (APIs, proxying, PE/ELF analysis)
│   ├── dev_server.py              # Dev server with live-reload
│   ├── requirements.txt           # Python deps (flask, requests, watchdog, pefile)
│   ├── templates/
│   │   └── index.html             # SPA with all tabs + Help modal
│   └── static/
│       ├── css/style.css          # Dark theme (~5000 lines)
│       ├── js/app.js              # Frontend logic (~5500 lines)
│       └── icon.png               # Logo
│
├── config/
│   ├── rustinel-config.toml       # Rustinel config (sigma/yara/ioc paths)
│   ├── fibratus.yml               # Fibratus config (JSON eventlog output)
│   └── profiles_init.yaml         # Detonator target profiles
│
├── rules/                          # Detection rules (copied to VM)
│
├── scripts/                        # Provisioning scripts
│   ├── install-prerequisites.ps1  # .NET 8, Python 3.12, Git, 7-Zip
│   ├── install-sysmon.ps1         # Sysmon (ARM64-aware)
│   ├── install-fibratus.ps1       # Fibratus v3.0.0
│   ├── install-rustinel.ps1       # Rustinel v1.1.1
│   ├── install-detection-rules.ps1 # Sigma + YARA rules
│   ├── install-detonator.ps1      # Detonator + DetonatorAgent
│   ├── install-litterbox.ps1      # LitterBox sandbox
│   ├── install-thezoo.ps1        # theZoo malware repository + WebUI
│   ├── install-hunt-sleeping-beacons.ps1 # Hunt-Sleeping-Beacons (VS Build Tools + compile)
│   ├── install-re-tools.ps1      # Detect It Easy, WinDbg, Ghidra
│   ├── install-webui.ps1          # Web UI deployment
│   └── configure-services.ps1    # Service registration (runs on every boot)
│
└── test_alerts/                    # Test data for pipeline verification

VM File Layout

C:\DetonationChamberUI\             Web UI (Flask)
C:\tools\rustinel\                  Rustinel ETW engine + rules
C:\tools\fibratus\                  Fibratus kernel tracer
C:\DetonatorAgent\                  .NET 8 execution agent
C:\LitterBox\                       Analysis sandbox
C:\tools\ThreatCheck\               AV signature scanner
C:\tools\DefenderCheck\             Defender evasion tester
C:\tools\Hunt-Sleeping-Beacons\     Sleeping beacon scanner
C:\tools\theZoo-WebUI\              theZoo malware sample browser (:8888)
C:\tools\detection-rules\           Sigma + YARA + IOC rules
C:\ProgramData\chocolatey\lib\die\  Detect It Easy (DiE 3.21)
C:\ProgramData\chocolatey\lib\ghidra\ Ghidra 12.1.2
WinDbgX.exe                         WinDbg Preview (via winget)
C:\Users\vagrant\Desktop\infected\  Malware samples (Defender-excluded)

---

Troubleshooting

Check service status

# macOS / Linux
make services

# Windows
.\make.ps1 services

Expected output:

  SERVICE               STATE
  -------               -----
  DetonationChamberUI   Running
  Rustinel              Running
  DetonatorAgent        Running
  LitterBox             Running
  Fibratus              Running
  Sysmon                Running
  theZoo-WebUI          Running

Services not starting

# SSH/RDP into the VM
vagrant ssh  # or: vagrant rdp

# Check and restart services
Get-ScheduledTask -TaskName DetonationChamberUI | Start-ScheduledTask
Get-ScheduledTask -TaskName Rustinel | Start-ScheduledTask
Get-ScheduledTask -TaskName DetonatorAgent | Start-ScheduledTask
Get-ScheduledTask -TaskName LitterBox | Start-ScheduledTask

# View logs
Get-Content C:\tools\logs\DetonatorAgent.log -Tail 50
Get-Content C:\tools\logs\DetonationChamberUI.log -Tail 50

Port forwarding not working (Hyper-V)

Hyper-V uses a virtual switch. Connect directly via the VM's IP:

# Find VM IP
.\make.ps1 status
# Or: vagrant ssh -c "ipconfig"

# Override in make.ps1
.\make.ps1 status -VMIp 172.17.x.x

Web UI not loading

# Check if Flask is running
make status  # or: .\make.ps1 status

# Restart it
make restart  # or: .\make.ps1 restart

# View logs
make logs  # or: .\make.ps1 logs

Rustinel not detecting events

# Inside the VM:
Get-Process rustinel
Get-Content C:\tools\rustinel\logs\rustinel.log.* | Select-Object -Last 20
logman query -ets | findstr rustinel

# Restart if stale
logman stop rustinel-etw-trace -ets 2>$null
Start-ScheduledTask -TaskName "Rustinel"

macOS: QEMU won't start

qemu-system-aarch64 --accel help  # Should show: hvf
ls /opt/homebrew/share/qemu/edk2-aarch64-code.fd
vagrant plugin list | grep qemu

Local install fails

# Verify Python version (needs 3.10+)
python3 --version

# If venv creation fails, try:
make uninstall  # or: .\make.ps1 uninstall
make install    # or: .\make.ps1 install

---

Security Notes

This VM is designed for malware analysis — treat it as compromised.

• Use snapshots before each detonation (vagrant snapshot save clean_state)
• Network isolation recommended (Hyper-V internal/private switch)
• Defender exclusions configured for detonation paths only
• Rustinel active response is disabled by default
• The Web UI has no authentication — bind to localhost or use on isolated networks only

---

Credits

Project	Role
dobin/detonator	Orchestration framework
dobin/DetonatorAgent	Execution agent
rabbitstack/fibratus	ETW detection engine
Karib0u/rustinel	Sigma/YARA EDR agent
BlackSnufkin/LitterBox	Payload analysis sandbox
thefLink/Hunt-Sleeping-Beacons	Sleeping beacon callstack scanner
ytisf/theZoo	Malware sample repository
kawaiipantsu/theZoo-WebUI	theZoo web frontend
horsicq/DIE-engine	Detect It Easy
NationalSecurityAgency/ghidra	Ghidra RE framework
Microsoft WinDbg	Windows debugger

---

_{Built for security research and EDR testing. Use responsibly.}
